The CZI TK300 Tethered Power System for DJI M300 is the first portable tethered power solution globally. Weighing just 28 lb., it offers quick deployment, user-friendly operation, and backpack portability. Featuring an IP54 protection rating and advanced intelligent monitoring and display functions, it ensures reliable performance in demanding environments..
The DJI M300 tethered system transforms single-phase or three-phase AC power into high-voltage DC, delivering continuous power to the drone via a high-performance nickel alloy cable. When paired with backup batteries, it enables up to 24 hours of uninterrupted operation while maintaining safe flight conditions.
The TK300 tethered system consists of two components: the onboard power supply mounted on the drone and the integrated ground power station featuring both manual and automatic operation. This ground unit combines the power supply, high-performance cables, and an automatic winch into a compact system. Its design enhances portability, enables rapid deployment of 100-meter cables with automatic winding, and minimizes cable stress and bending, effectively protecting the cable during use.
Features:
- • Fully compatible with the DJI M300/M350 drone, allowing damage-free installation and rapid deployment.
- • Strong Expandability: Independent control links, compatible with various drone payloads, ensuring safe power supply.
- • Power Data Display: Includes automatic alerts for power outages and automatic fault notifications. Extended hovering capabilities.
- • Long-term Drone Power Supply: Enables long-duration hovering, over 8 hours of long-duration power supply.
- • OTA upgrading: featuring both wired and wireless OTA (Over-The-Air) upgrade capabilities.
-
• Lightweight and Portable:
- • Weight: only 12.7 kg.

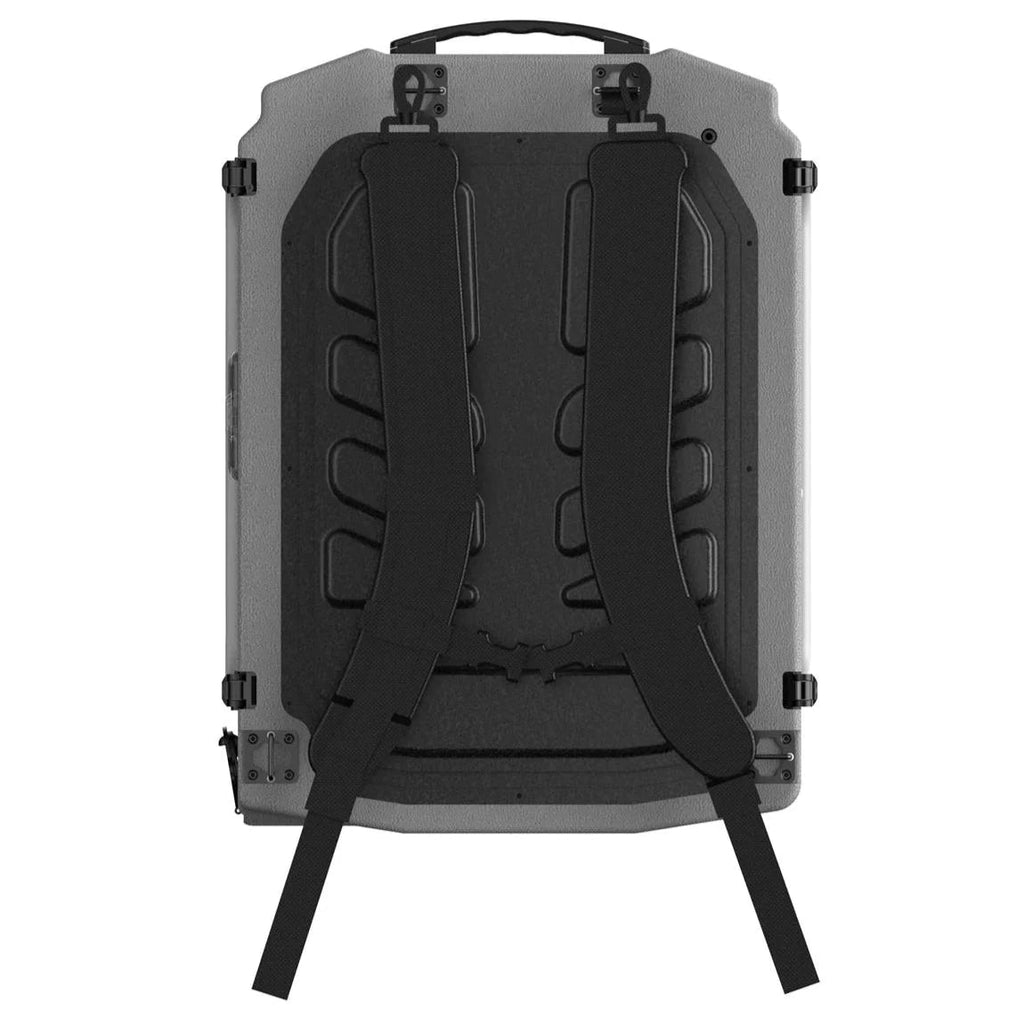

- • Comes with a dedicated backpack for easy carrying.
- • Tripod with quick-release feature.
- • Aerial Lighting: Equipped with high-power lighting attachments, it can illuminate large areas, useful for nighttime operations, search and rescue missions, and emergency response scenarios. ( lights is optional )
- • Wetaherproof: Equipped is IP54 rated for outdoor use
Specifications
|
Air Power Module /Airborne Power Supply |
|
| Main Rated Output Current | 60A |
| Rated Output Voltage | 25V |
| Rated Input Voltage | 400V |
| Power | 1.5KW |
| Weight | 320g |
| Size | 150.9 x 59.4 x 81 mm |
|

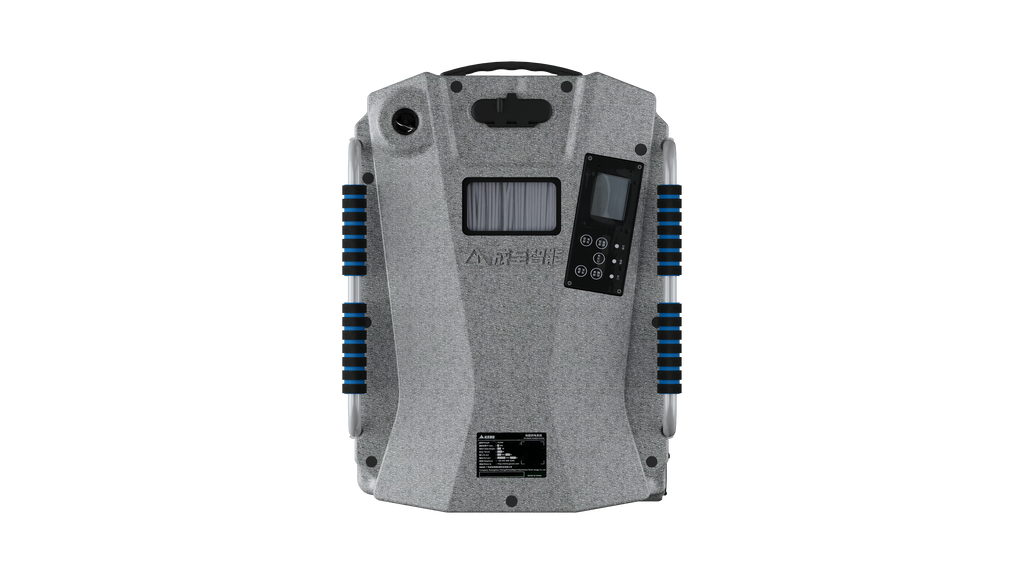

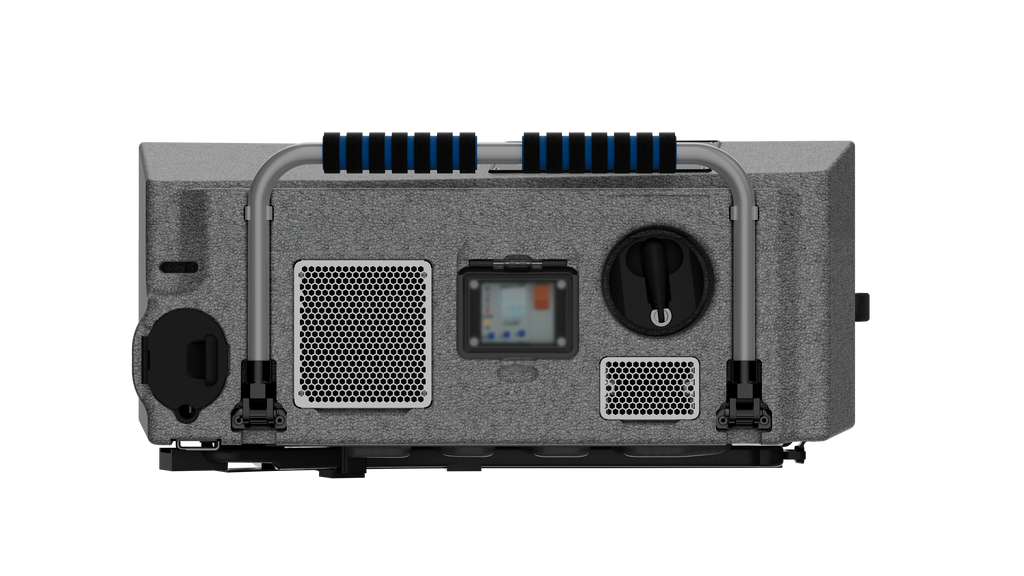

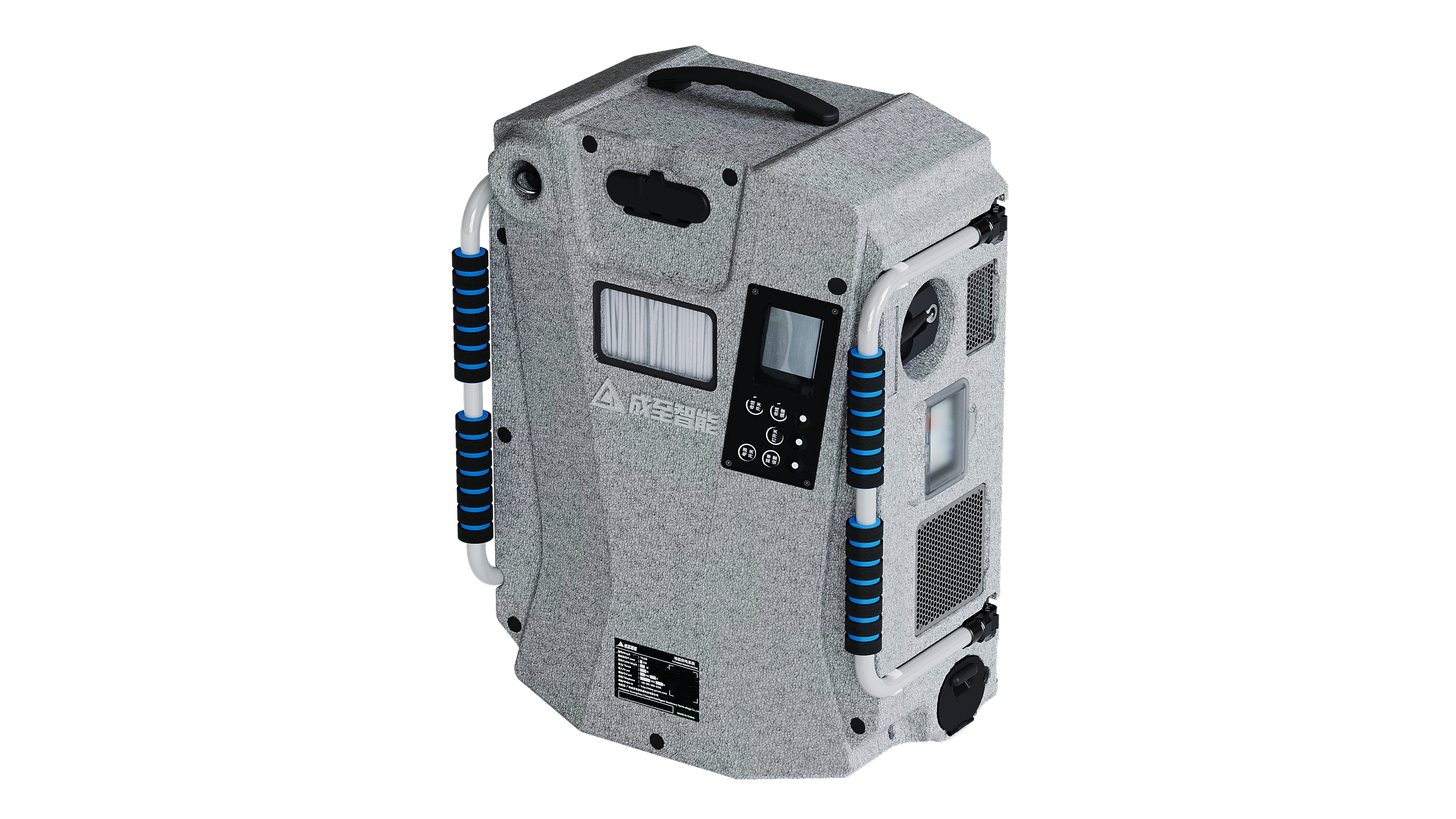

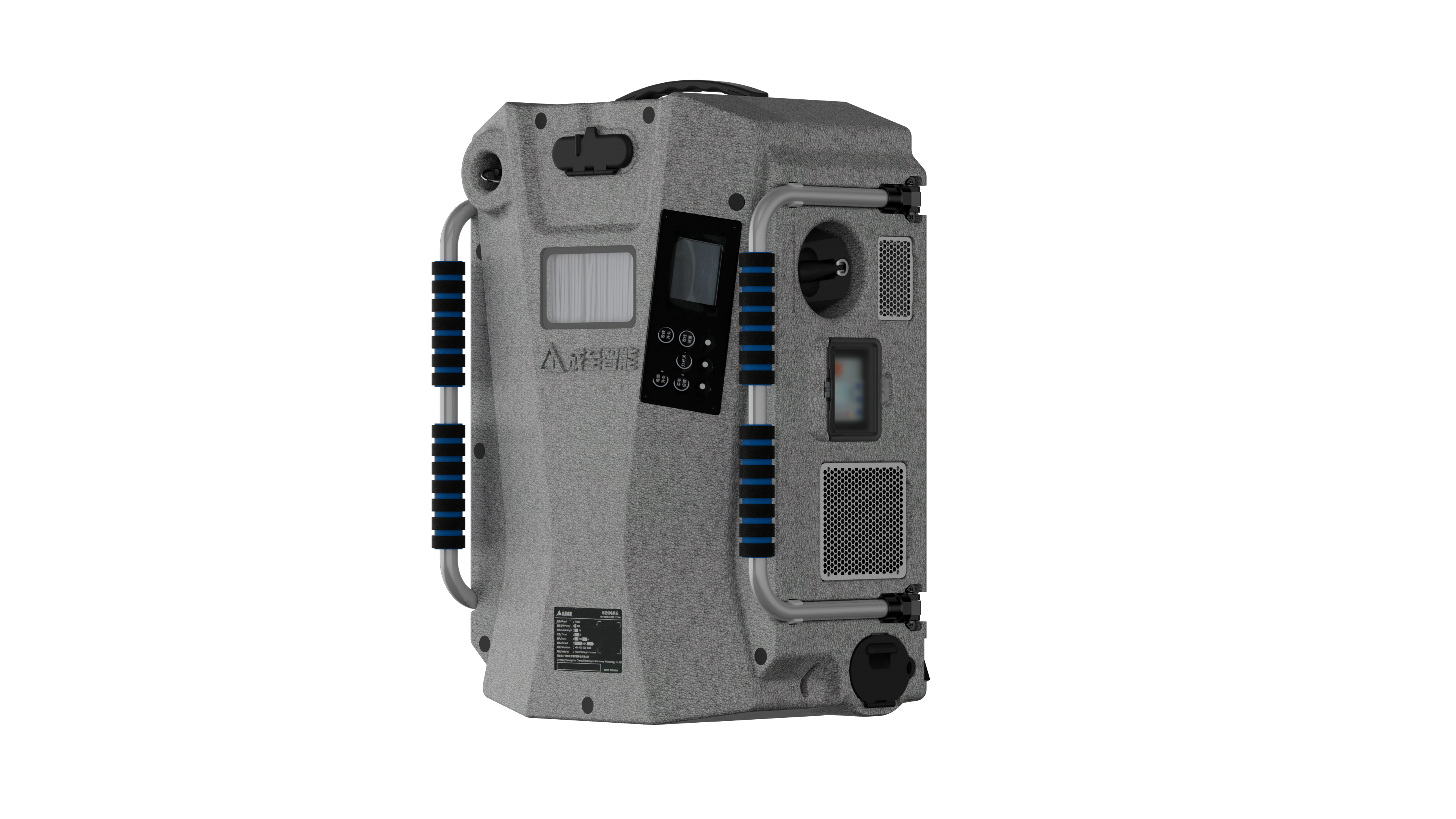

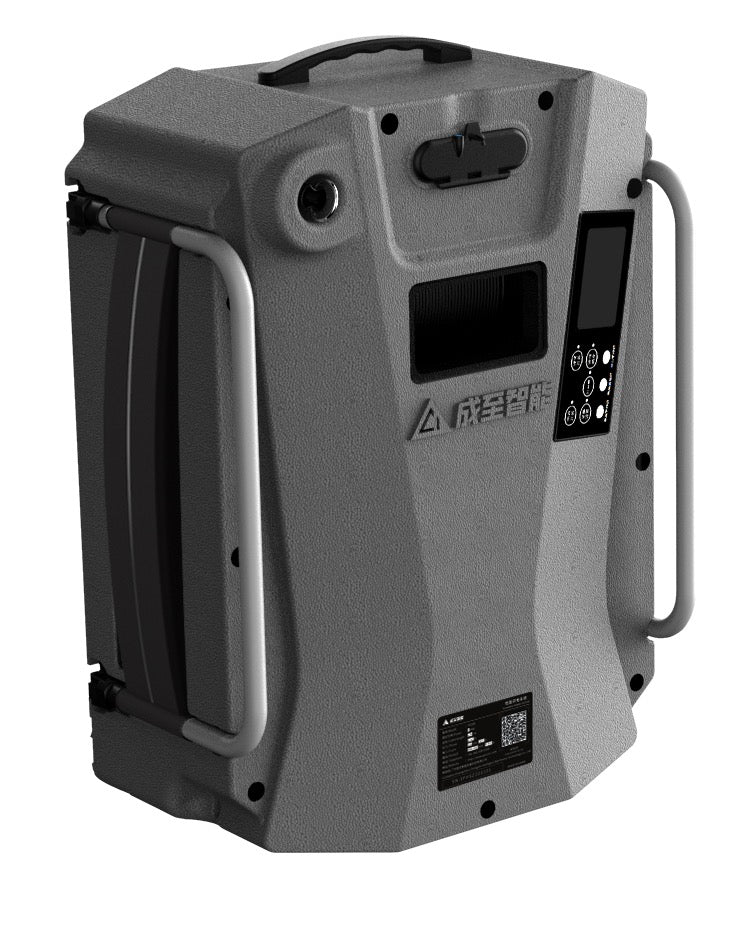

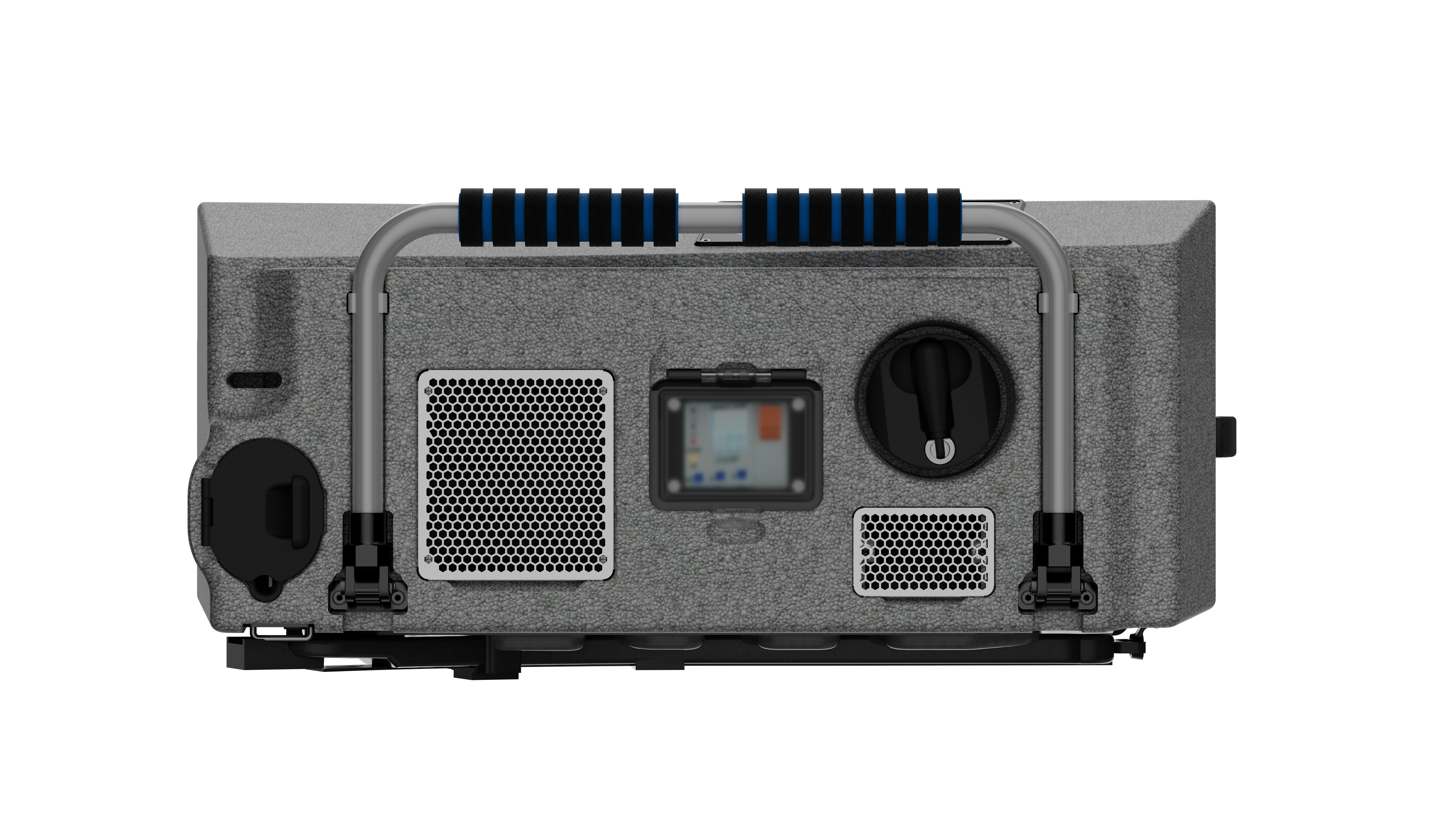

Ground Power Supply Station |
|
| Output Voltage | 400Vdc |
| Rated Working Frequency | 50/60 Hz |
| Rated Input Voltage | 90-264 VAC +10% |
| Power | 3000W (176Vac-264Vac), 1500W (90Vac-175Vac) |
| Weight | 7.5Kg |
| Size | 356 x 310 x 229 mm |
| Tether cable | 80M length, diameter < 2.8mm, overcurrent >10A, weight <1.2kg/100m, tensile strength >20kg, voltage resistance 600V, internal resistance <3.6Ω/100m @ 20°C |
