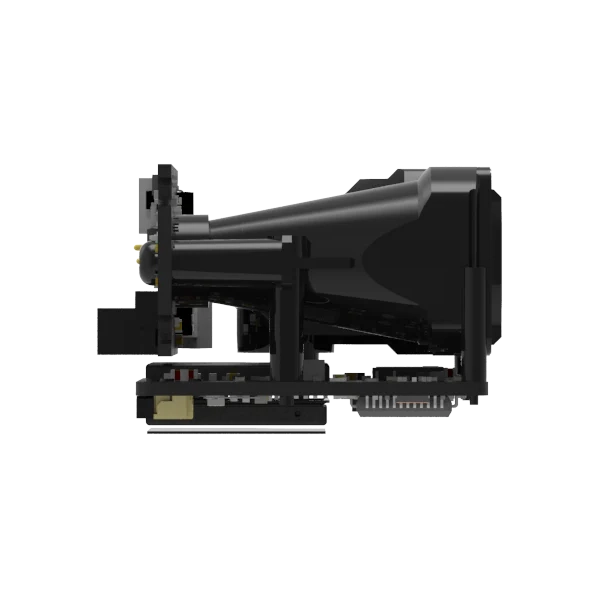

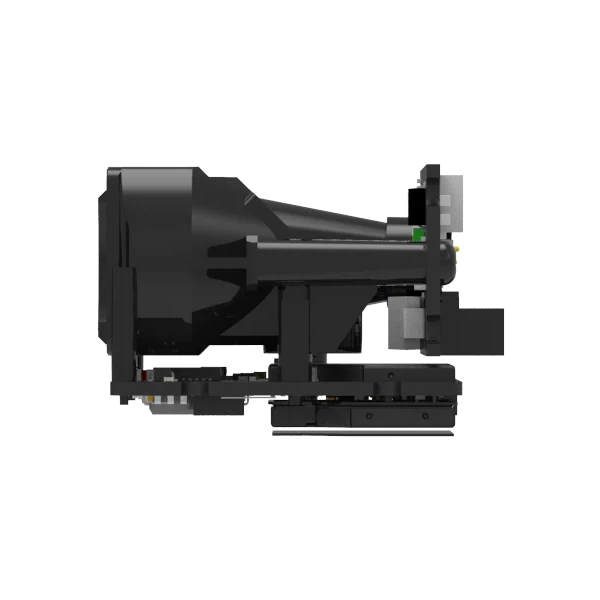

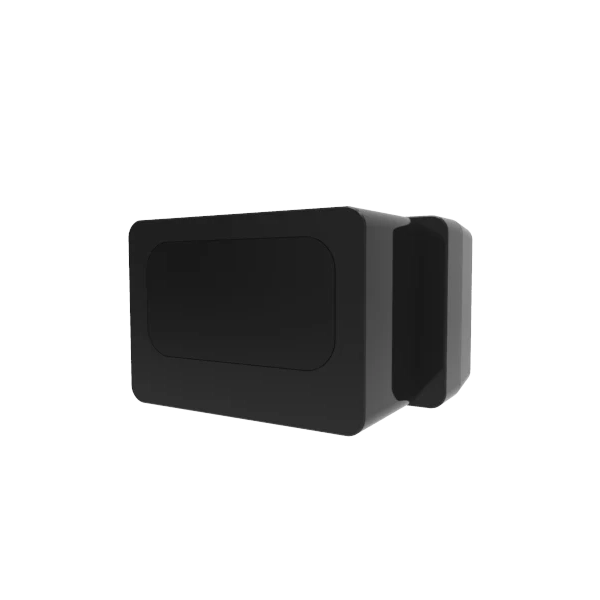

Benewake TFA300 Series LiDAR Sensor
Ultra-High-Frequency Lightweight UAV LiDAR
 |
 |
 |
The TFA300 series includes the ultra-light TFA300-L without housing version and the TFA300 with IP67 protective housing. Both models feature a high frequency of up to 10,000 Hz. In applications such as Electro optical/infrared (EO/IR) Gimbals, SAR（search and rescue）Drone, and Utra High-speed FPV racing Drone, the TFA300 series facilitates camera focal distance auto-adjustment, precise localisation, stable altitude maintenance during cruise, and obstacle avoidance during high-speed flight.
 |
 |
 |
 |
Key Features
-
Ultra-High Frequency: Up to 10,000 Hz, detects objects moving at Mach speed with real-time precision
-
Long Range: Measurement distance up to 290 meters
-
Ultra Lightweight: 10.5 g (TFA300-L), ideal for SWaP-constrained platforms
-
IP67 Protection: Available in rugged housing for harsh environments (TFA300 model)
-
DroneCAN & UART Support: Plug-and-play with most autopilot systems, JST GH terminal compatible
-
High Precision: ±10 cm (<10m), 1% (≥10 m) accuracy
-
Wide Operating Temp: -20°C to +60°C, ready for mission-critical deployments
-
Compact Form Factor: 32.0 × 30.2 × 20.2 mm – fits tight spaces like gimbals and pods
Environmental Robustness All-Weather Operational Reliability
TFA300 series is fully optimised for complex drone applications, including operation under extreme temperatures, 100 KLux ambient light, and harsh outdoor conditions such as rain, fog, and dust. It effectively resolves frequent false detection issues common in conventional LiDAR systems. To date, this technology has enabled delivery drone customers to achieve over 400,000 accident-free package deliveries globally.
