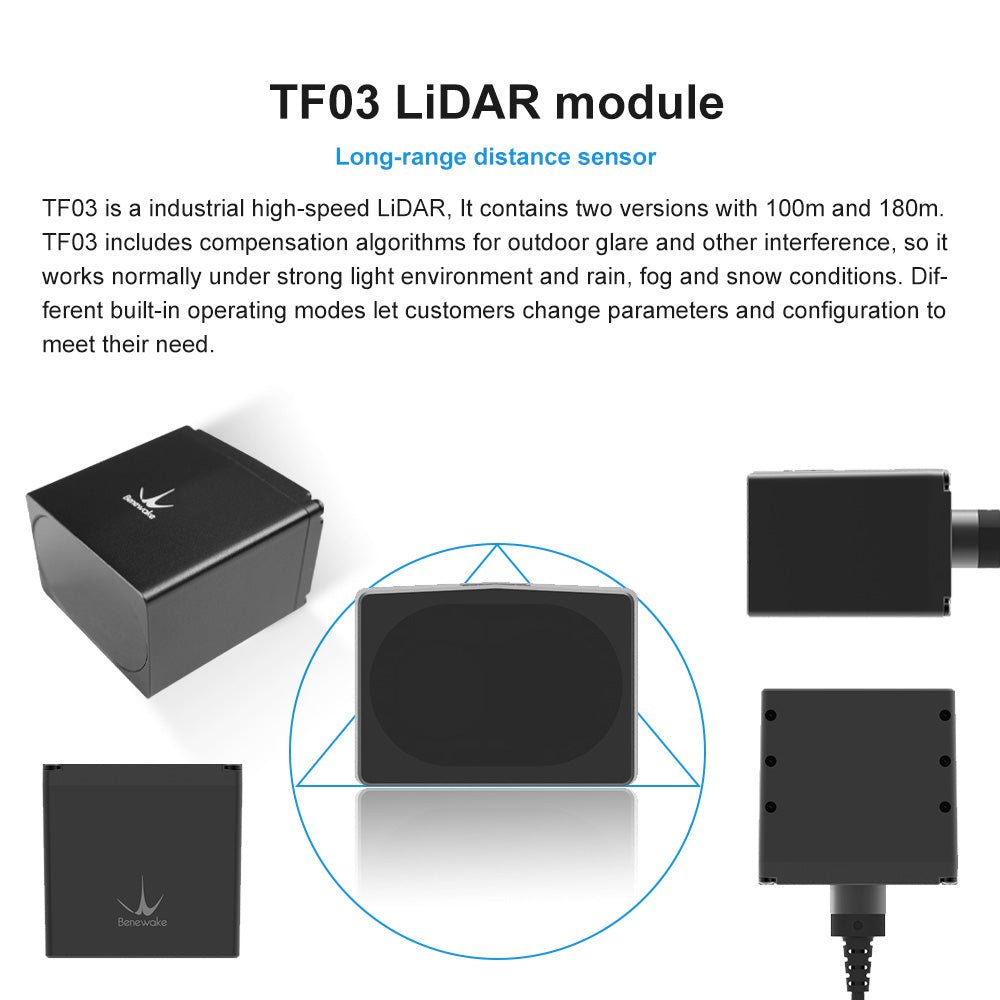

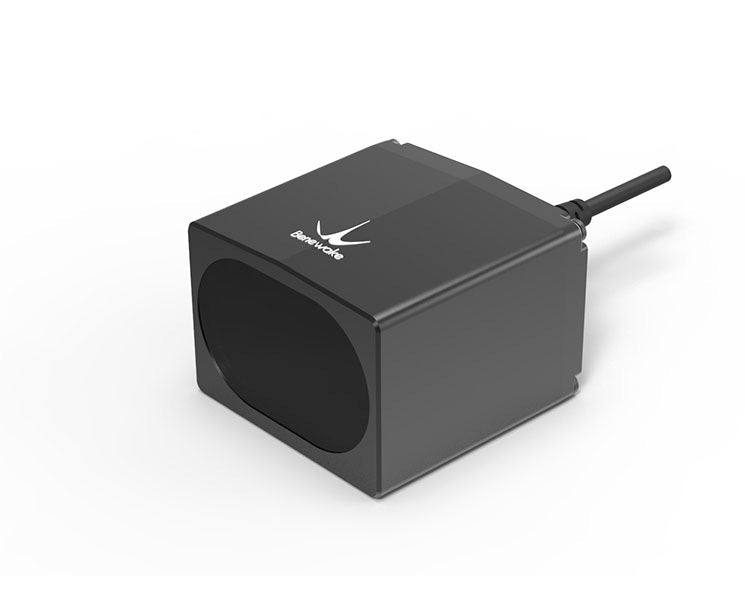

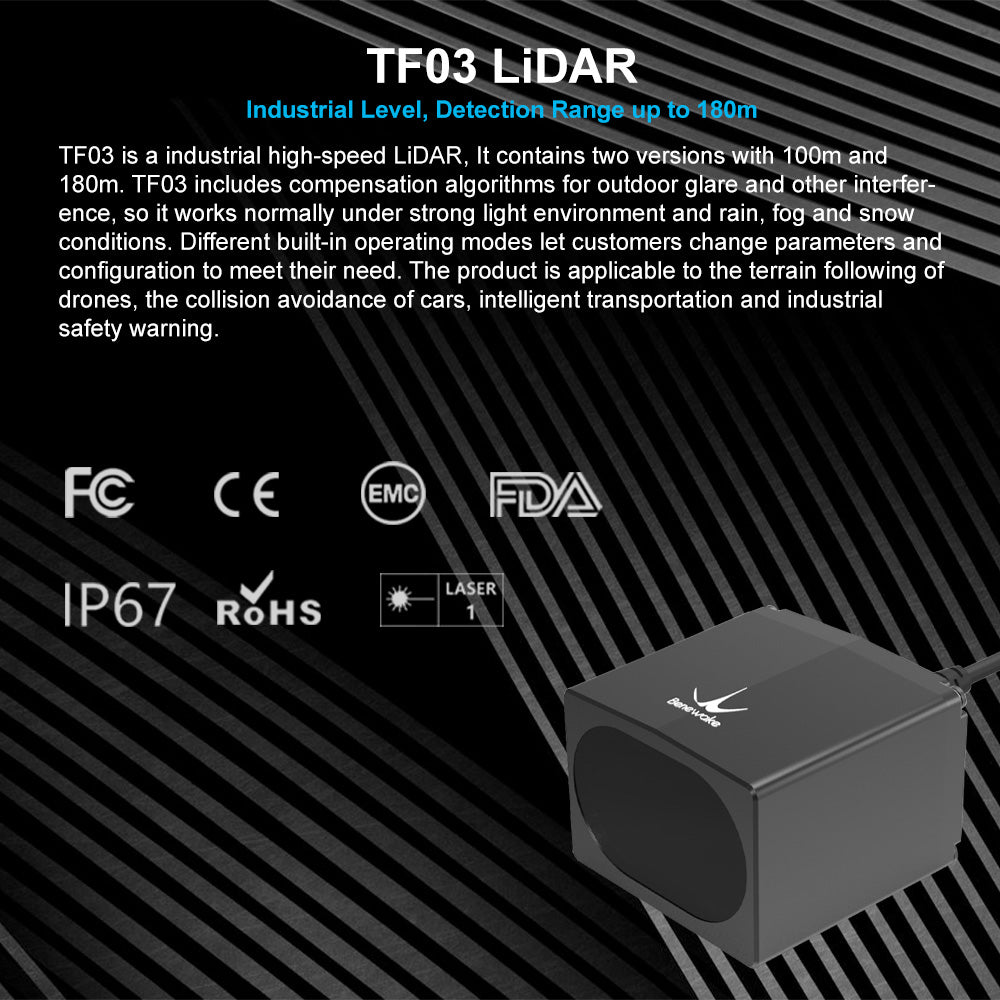

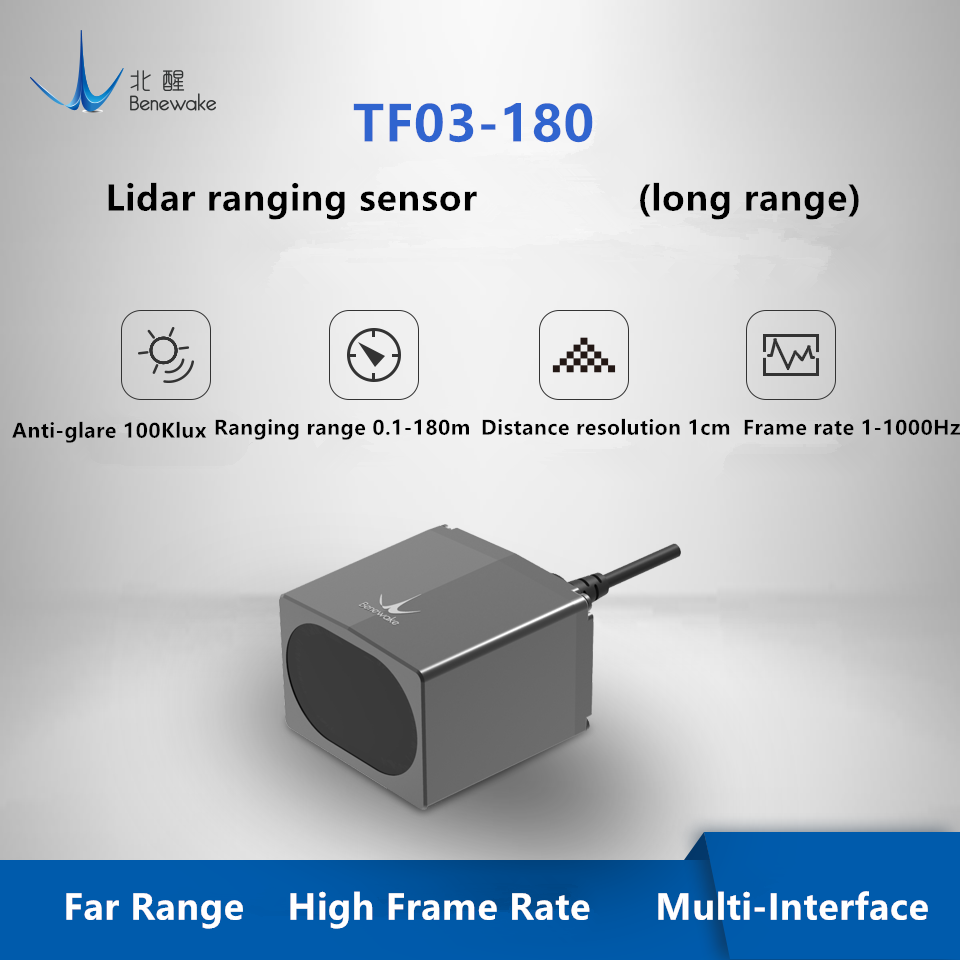

TF03-180 - 180M Long Range IP67 Lidar Sensor

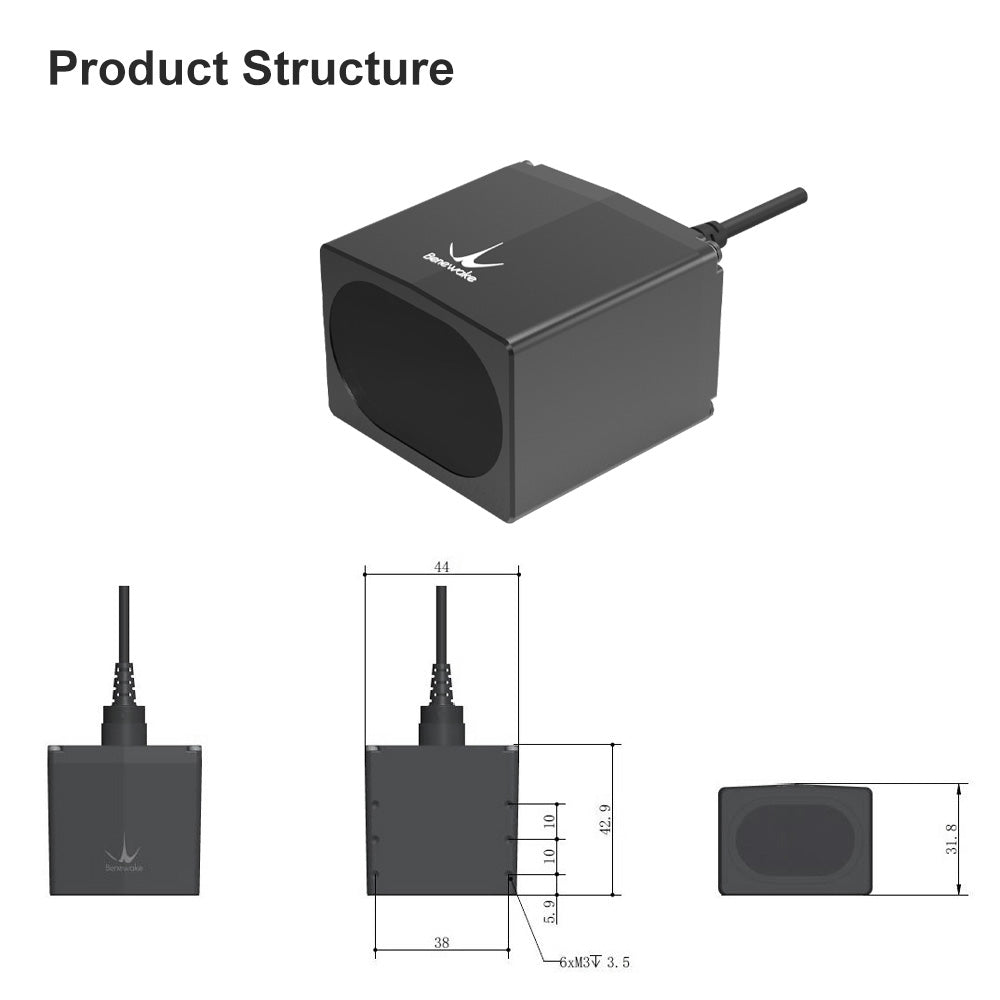

The TF03, the third generation in the TF series, builds on the compact design and cost efficiency of its predecessors. It enhances over ten critical specifications and integrates multiple expansion options to suit diverse application needs. Available with detection ranges of 100m or 180m, the sensor is compact at just 44×42.9×31.8mm, fitting easily in one hand. This versatile device is ideal for drone terrain following, automotive collision avoidance, intelligent transportation, and industrial safety alert systems.
Key Features:
- IP67
- Operating Range: 180m
- Features multi-interface compatibility
- Offers high speed measuring up to 1KHz (can be customized to up to 10kHz)
- Able to be used outdoors
Applications
- Industrial Automation: Precision material handling, inventory control, and assembly positioning in production lines.
- Security Monitoring: Real-time monitoring and alerts for intrusions in guarded zones.
- UAV & Robotics: Enhancing obstacle avoidance, altitude control, SLAM in drones and robots.
- Logistics/Warehouse Mgmt: High-accuracy inventory and sorting in automated warehouses.
- Intelligent Transportation: Distance sensing, stacking, and safety monitoring in autonomous vehicles and ports.
- Construction: Precise measurements for structures, elevators, inspections.
- Geological Surveying: Outdoor terrain mapping, mineral exploration.
-
Agriculture & Forestry: Crop monitoring, drone height control, resource surveys.
Specifications:
Performance parameters
- Operating Range: 100m (max 180m)
- Non-detection zone: 10cm
- Distance resolution: 1cm
- Accuracy: ±10cm (less than 10m), 1% (more than 10m)
- Refresh rate: 1Hz-1,000Hz (default 100Hz)
- Ambient light immunity: 100Klux
Optical parameters
- Wavelength of Light Source: 905nm
- FOV: 0.5°
Ambient data
- Operation Temperature: -25~60
Communication and Interface
- Form of Output Data: Hexadecimal distance value; Character string;
- Communication Interface: UART; CAN
- Mechanical/Electrical parameters
- Supply Voltage: DC 5V (=200mA)
- Power Consumption: 0.9W
- Weight: 77g
Detailed Descriptions:
 |
 |
 |
 |
 |
 |
 |
 |
