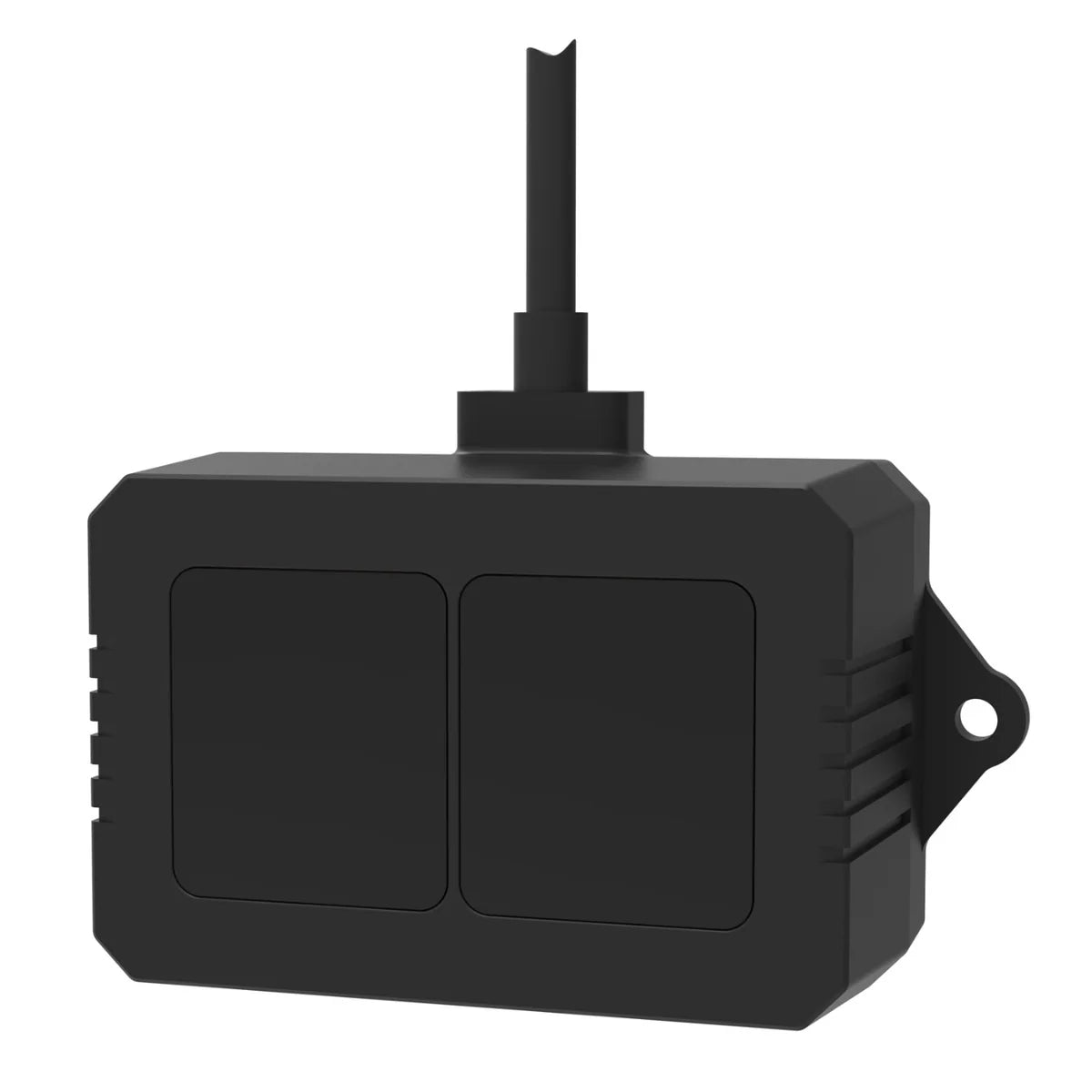

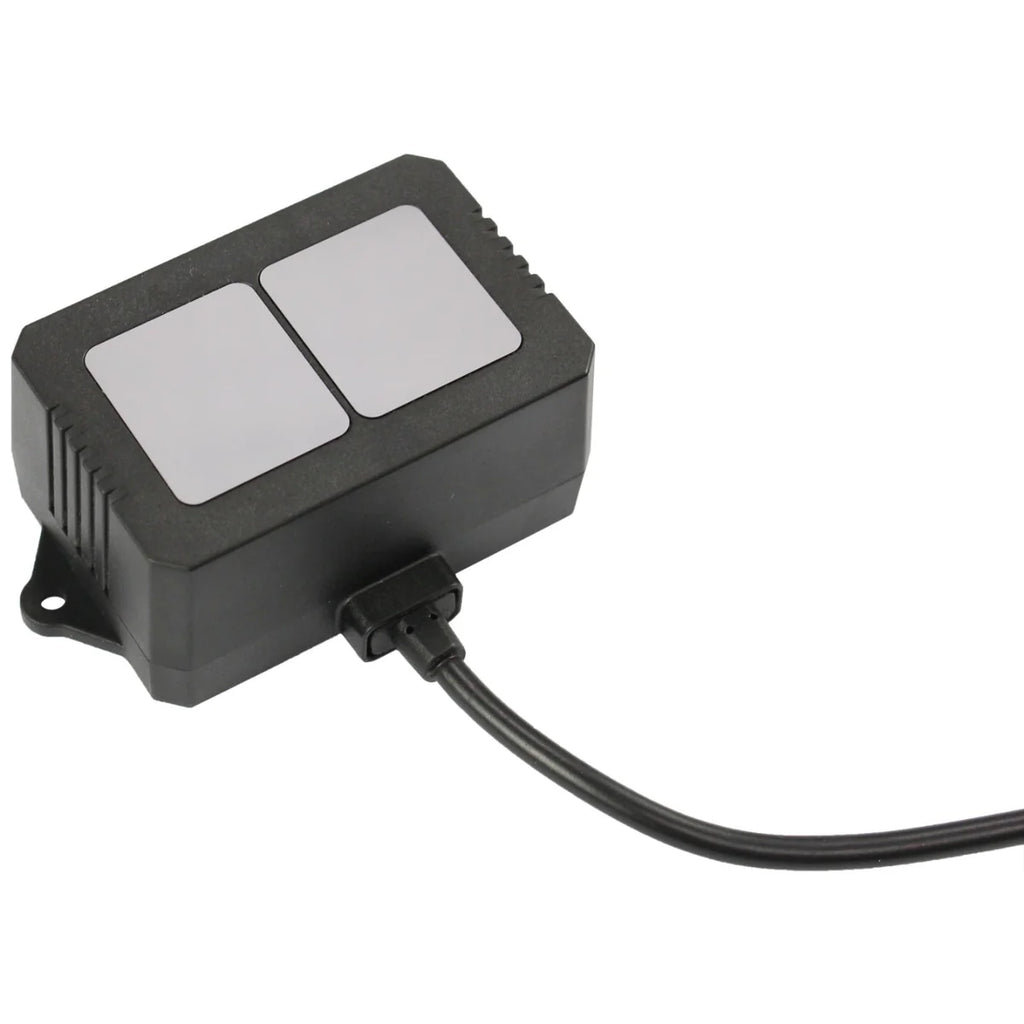

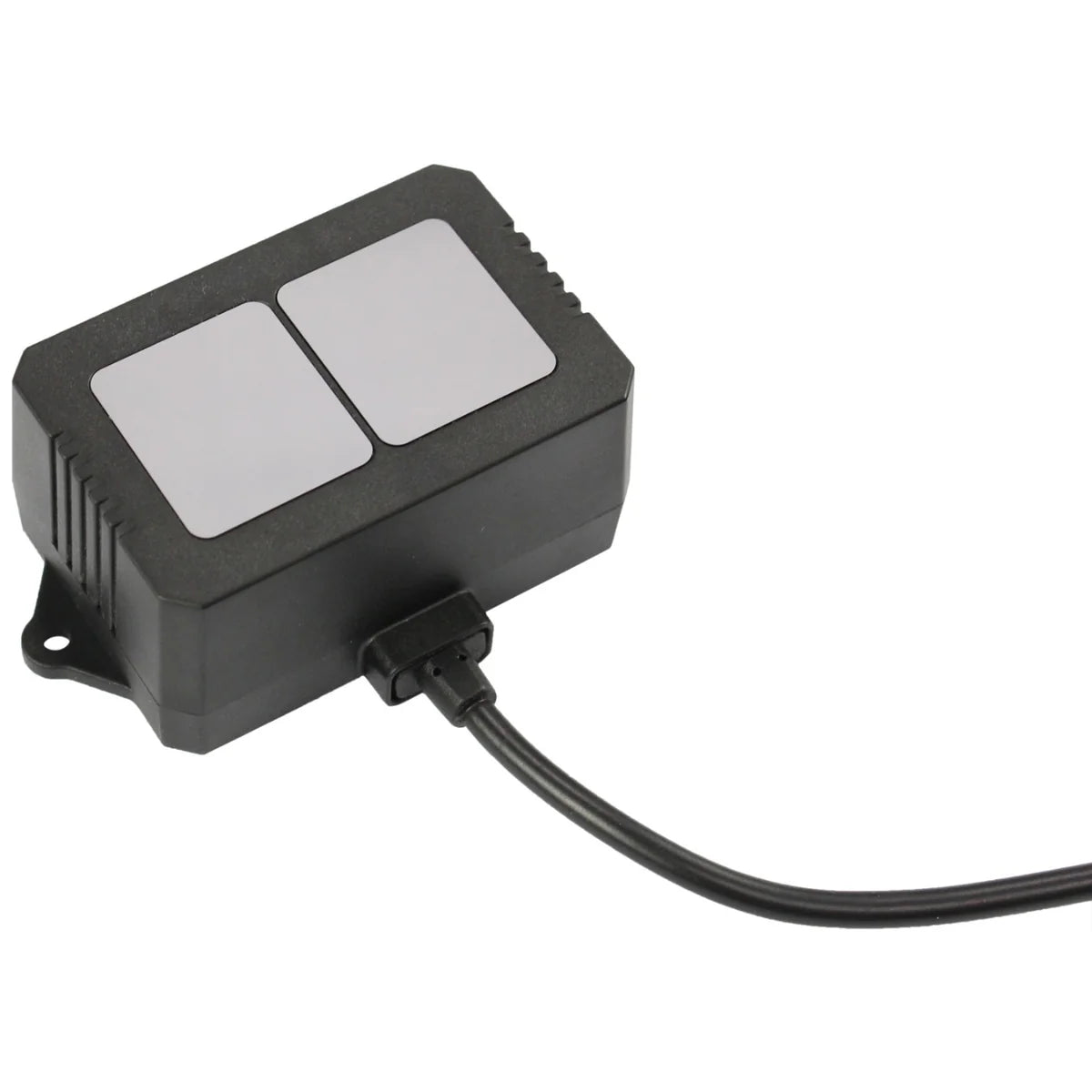

TF02-Pro - 40m Rangefinder IP65 Lidar Sensor
The Benewake TF02-Pro is a single-point ranging LIDAR. The performance and accuracy with different reflective surfaces is improved over the TF02. It can achieve stable, accurate, sensitive and high frequency range detection.
The protection design of the TF02-Pro is IP65 level, which protects it from the dust, water, and corrosion. It is anti-interferential from the strong light outdoors. It can work under 100K lux light without the interference from the temperature, humidity, light, electronics and airflow.
Key Features:
- Benewake TF02-Pro LIDAR Rangefinder IP65
- Single-point ranging LIDAR
- Can achieve stable, accurate, sensitive and high-frequency range detection
- Range up to 40 meters
- Ambient light resistance up to 100 Klux
Specifications:
Performance parameters
- 0.05 ~40 m @90% reflectivity
- 0.05 ~13.5 m @10% reflectivity
- 0.05 ~40 m @90% reflectivity (100 Klux)
- 0.05 ~13.5 m @10% reflectivity (100 Klux)
- Accuracy: ±5 cm (0.05 ~5 m), ±1% (5~40 m)
- Distance Resolution: 1 cm
- Frame rate: 100 Hz
- Repeatability: 1σ: <2 cm (0.05 ~35 m @90% reflectivity)
- Ambient light resistance: 100 Klux
- Operation t temperature: -20 ~ 60 °C
- Protection Level: IP65
Optical parameters
- Light source: VCSEL
- Central wavelength: 850 nm
- FOV: 3°
- Photobiological safety: Class 1 (EN60825)
Electrical Parameters
- Supply voltage: DC 5 V ~ 12 V
- Average Current: ≤200 mA
- Power consumption: ≤1 W
- Peak Current: 300 mA
- Communication level: LVTTL (3.3 V)
- Communication interface: UART/I2C
Other Parameters
- Weight: 50 g (with cables)
- Enclosure material: PC/ABS
- Storage temperature: -30 ~80 °C
- Cable length: 80 cm
