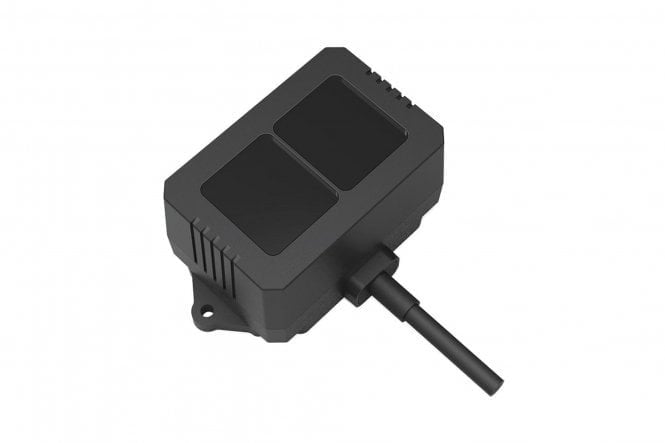

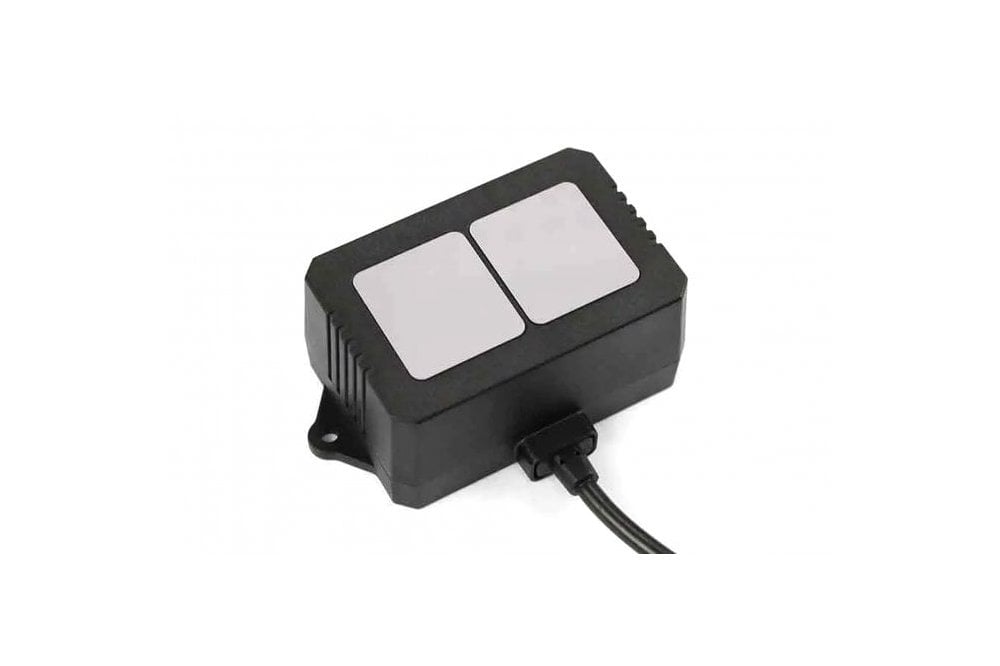

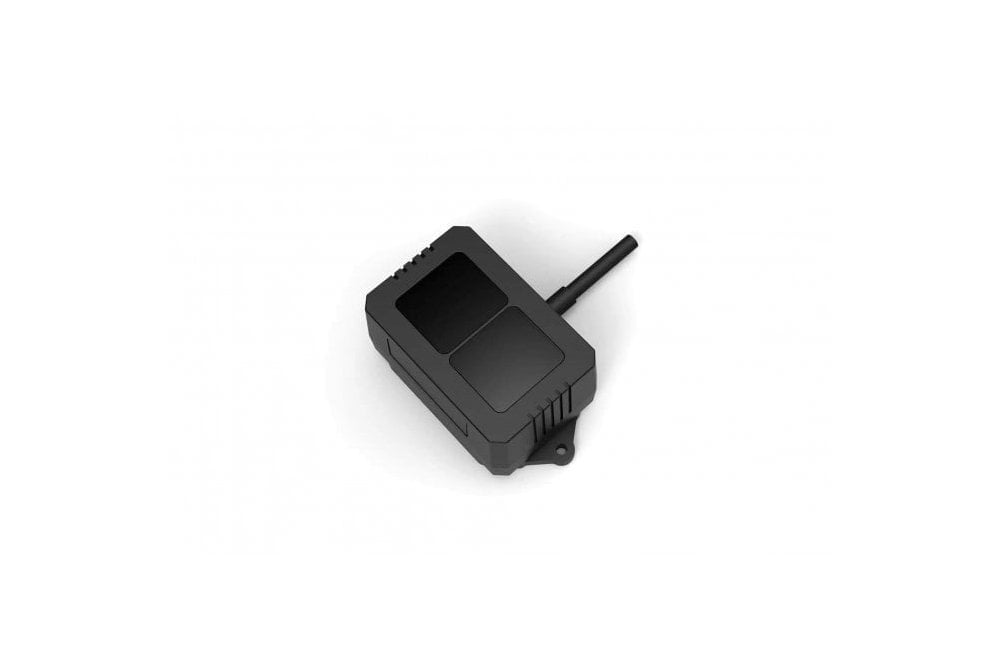

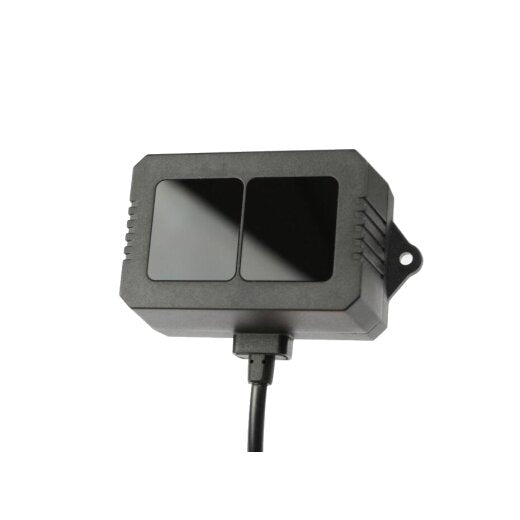

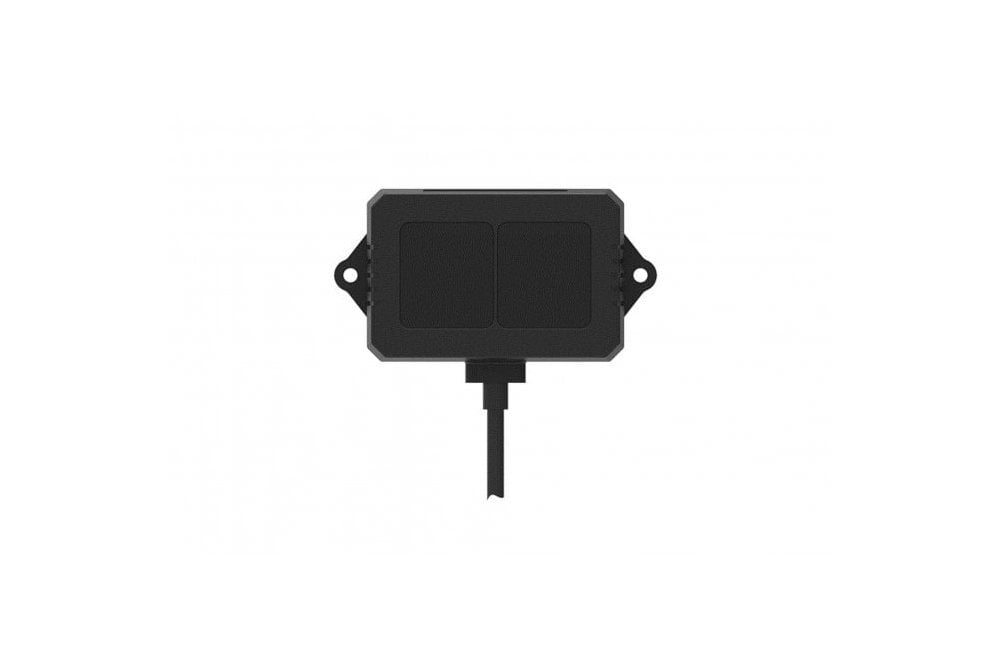

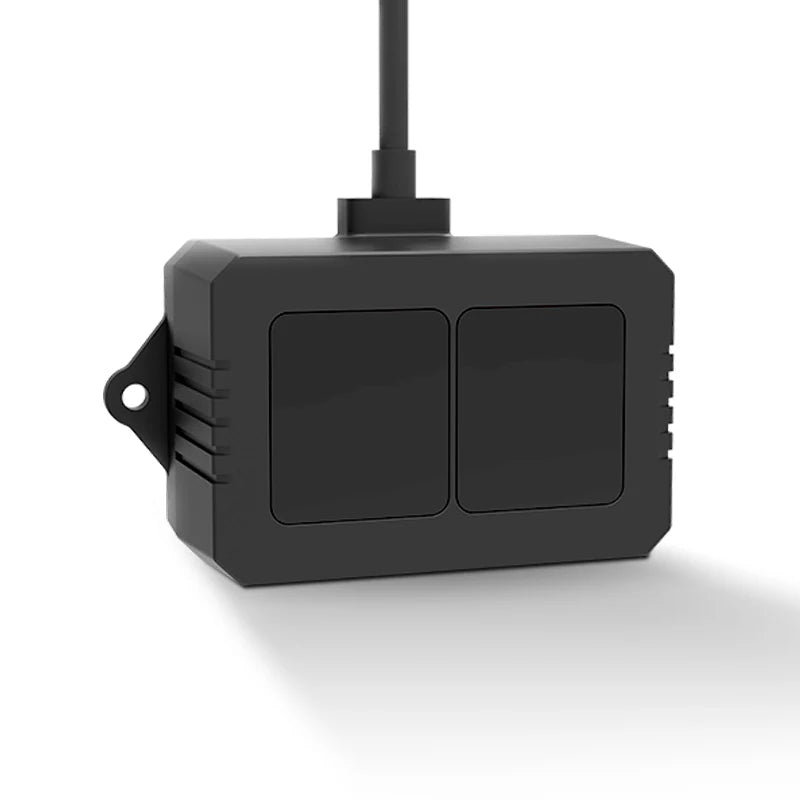

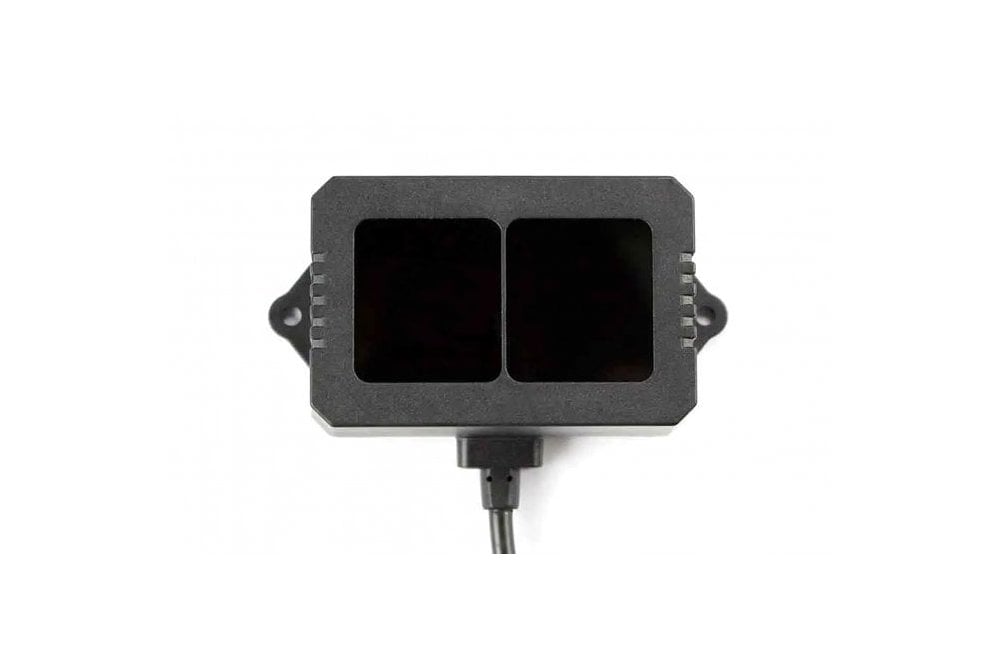

TF02-I - 40m Rangefinder IP65 Lidar Sensor
Benewake TF02-i is a powerful 40m industrial-grade ToF LiDAR sensor, designed for mid-range distance detection with high precision and reliability. Built as an upgraded version of TF02, it integrates a refined optical system and enhanced fusion algorithms to deliver stable and accurate performance across complex environments—including outdoor strong light, varied reflectivity surfaces, and changing temperatures.
With its IP65 waterproof enclosure, robust structure, and compatibility with RS-485 and CAN interfaces, TF02-i is built for demanding industrial applications, such as drone height detection, intelligent traffic systems, smart parking, and precision agriculture.
High Performance
-
40m long-range detection, optimized for outdoor use
-
IP65-rated waterproof enclosure for industrial protection
-
Anti-glare performance up to 100KLux, suitable for sunlight exposure
-
Upgraded fusion algorithm ensures high accuracy and stability
-
Wide-voltage input & reverse protection, tailored for industrial power supply needs
-
Compact and lightweight design for easy integration
Key Features:
-
-
Measuring Range: 0.1 – 40 m
-
Blind Zone: Min 10 cm
-
Accuracy: ±6 cm
-
Refresh Rate: Up to 100 Hz
-
Ambient Light Resistance: 100 KLux
-
Power Supply: Wide voltage range with reverse polarity protection
-
Interface: RS-485, CAN
-
Housing: ABS+PC, IP65 rated
-
Weight: ~52 g
-
Specifications:
Performance parameters
- 0.05 ~40 m @90% reflectivity
- 0.05 ~13.5 m @10% reflectivity
- 0.05 ~40 m @90% reflectivity (100 Klux)
- 0.05 ~13.5 m @10% reflectivity (100 Klux)
- Accuracy: ±5 cm (0.05 ~5 m), ±1% (5~40 m)
- Distance Resolution: 1 cm
- Frame rate: 100 Hz
- Repeatability: 1σ: <2 cm (0.05 ~35 m @90% reflectivity)
- Ambient light resistance: 100 Klux
- Operation t temperature: -20 ~ 60 °C
- Protection Level: IP65
Optical parameters
- Light source: VCSEL
- Central wavelength: 850 nm
- FOV: 3°
- Photobiological safety: Class 1 (EN60825)
Electrical Parameters
- Supply voltage: DC 5 V ~ 12 V
- Average Current: ≤200 mA
- Power consumption: ≤1 W
- Peak Current: 300 mA
- Communication level: LVTTL (3.3 V)
- Communication interface: UART/I2C
Other Parameters
- Weight: 50 g (with cables)
- Enclosure material: PC/ABS
- Storage temperature: -30 ~80 °C
- Cable length: 80 cm
