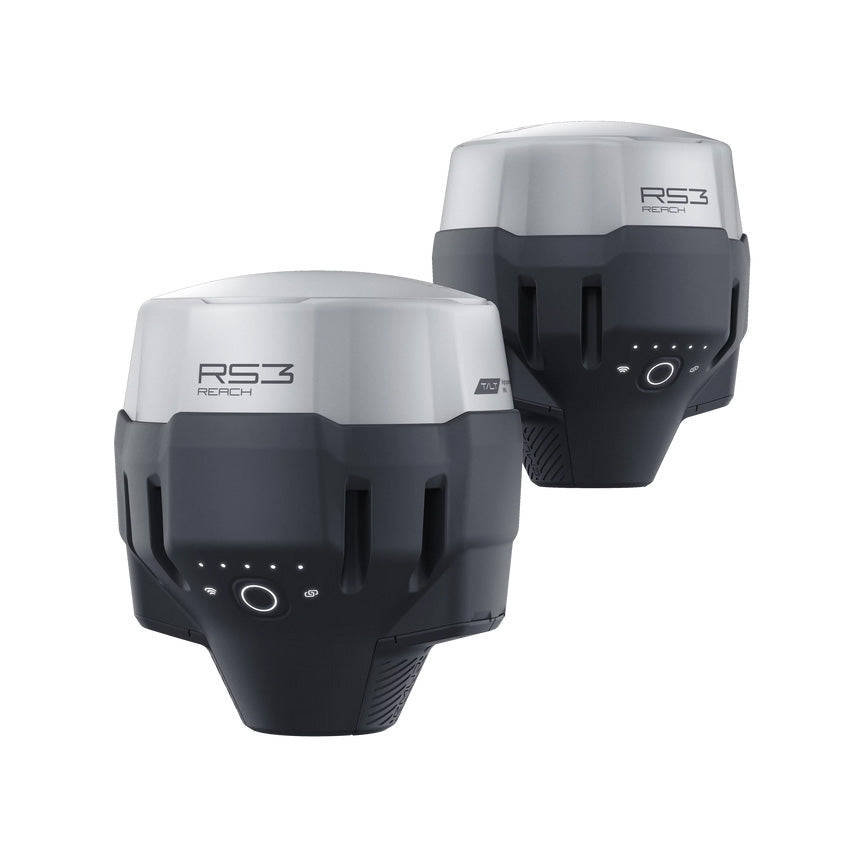

Dual Emlid RS3 GNSS Receivers with Tilt Compensation
- • Emlid Reach RS3 Multi-band RTK GNSS Receiver with Tilt Compensation
- • Offers survey-grade precision in inaccessible locations
- • Features 18-hour operation with tilt compensation
- • Supports NTRIP and RTCM3 protocols for corrections
- ª Withstands harsh conditions with an IP67 rating
With the Emlid Reach RS3 Multi-band RTK GNSS Receiver, even the most remote locations can be accurately surveyed thanks to its advanced multi-band technology and integrated tilt compensation. No need to worry about inaccessible areas, this device's precise measurements and user-friendly app make it the ultimate survey tool.
Engineered for precision, the Emlid RS3 Survey Kit boasts a powerful 6DOF IMU and GNSS support for multiple systems such as GPS/QZSS, GLONASS L1, L2; BeiDou B1, B2; Galileo E1, E5. With a long-lasting battery and tilt compensation feature, the device operates up to 18 hours at a time. With its USB Type-C charging, LTE and Wi-Fi connectivity, and dual-band radio capabilities, this powerful tool is designed to enhance your productivity and streamline your workflow.
Experience precision and reliability with the Emlid Reach RS3 Advanced GPS System. Supporting NTRIP and RTCM3 protocols, this system allows for seamless sending and receiving of corrections, providing accurate and efficient results. The package includes a carrying case, a LoRa antenna, and a USB Type-C cable to ensure you have everything you need to get started.
The device is compact with mechanical dimensions of 126 x 126 x 142 mm and a weight of 950g. It is designed to withstand harsh conditions with an ingress protection rating of IP67. The device can function autonomously for 18 hours as an RTK rover with tilt, and 22 hours of logging.
The versatile RS3 Survey Kit is loaded with features to help you collect data with precision and efficiency. With LoRa and UHF radios, an LTE modem, Wi-Fi, Bluetooth, and RS-232, USB Type-C ports, this system is designed to give you a variety of connectivity options. It also has an impressive internal storage capacity of 16 GB and can track a wide range of signals, including GPS/QZSS L1C/A, L2C, GLONASS L1OF, L2OF, BeiDou B1I, B2I, Galileo E1B/C, E5b. This makes it the perfect tool for any surveying project, allowing you to capture accurate and reliable data every time.
Specifications
|
||||||
Mechanical |
Electrical |
Positioning |
||||
| Dimensions: 126 x 126 x 142 mm | Autonomy: 18 hrs as RTK rover with tilt, 22 hrs of logging | Static: H: 4 mm + 0.5 ppm | V: 8 mm + 1 ppm | ||||
| Weight: 950 g | Battery:Li-Ion 5200 mAh, 7.2 V, 37.44 Wh | PPK: H: 5 mm + 0.5 ppm | V: 10 mm + 1 ppm | ||||
| Operating tº: -20 to +65 ºC | External power input: 7.2 V | RTK: H: 7 mm + 1 ppm | V: 14 mm + 1 ppm | ||||
| Ingress protection: IP67 | Charging: USB Type-C 5 V, 3 A | Tilt compensation: RTK + 2 mm + 0.3 mm/° | ||||
| Certification: FCC, CE | Convergence time: ~5 s typically | |||||
|
|
||||||
Connectivity |
Data |
GNSS |
||||
| LoRa radio | Corrections: NTRIP, RTCM3 | Number of channels: 184 | ||||
| Frequency range: 868/915 MHz | Position output: NMEA, LLH/XYZ | Update rates: up to 10 Hz | ||||
| Power: 0.1W | Data Logging: RINEX, NMEA, LLH/XYZ, UBX | IMU: 6DOF | ||||
| UHF radio—receive only* | Signal tracked: GPS/QZSS L1C/A, L2C GLONASS L1OF, L2OF BeiDou B1I, B2I Galileo E1-B/C, E5b | |||||
| Frequency range: 410 - 470 MHz | ||||||
| Protocols: TRIMTALK 450S** | ||||||
| Modulation type: GMSK | ||||||
| LTE modem | ||||||
| Regions: Global | ||||||
| Bands: FDD-LTE: 1,2,3,4,5,7, 8, 12, 13, 18, 19, 20, 26, 28, 66 TD-LTE: 38,40,41 - UMTS (WCDMA/FDD): 1,3,2,4,5,6, 8,19 Quad-band, 850/1900, 900/1800 MHz | ||||||
| SIM card: nano-SIM | ||||||
| WiFi: 802.11 b/g/n | ||||||
| Bluetooth: 4.0 (BR/EDR + LE) | ||||||
| Ports: RS-232, USB Type-C | ||||||
|
*Requires a 410-470 MHz antenna, sold separately. **TRIMTALK is a trademark of Trimble Inc. |
||||||
Package includes:
- • 2x Reach RS3
- • 2x Carrying case with a strap
- • 2x Radio antenna
- • 2x USB Type-C cable
