Emlid Launches Reach RS3 GNSS Receiver With Tilt Compensation
- • Emlid Reach RS3 Multi-band RTK GNSS Receiver with Tilt Compensation
- • Offers survey-grade precision in inaccessible locations
- • Features 18-hour operation with tilt compensation
- • Supports NTRIP and RTCM3 protocols for corrections
- ª Withstands harsh conditions with an IP67 rating

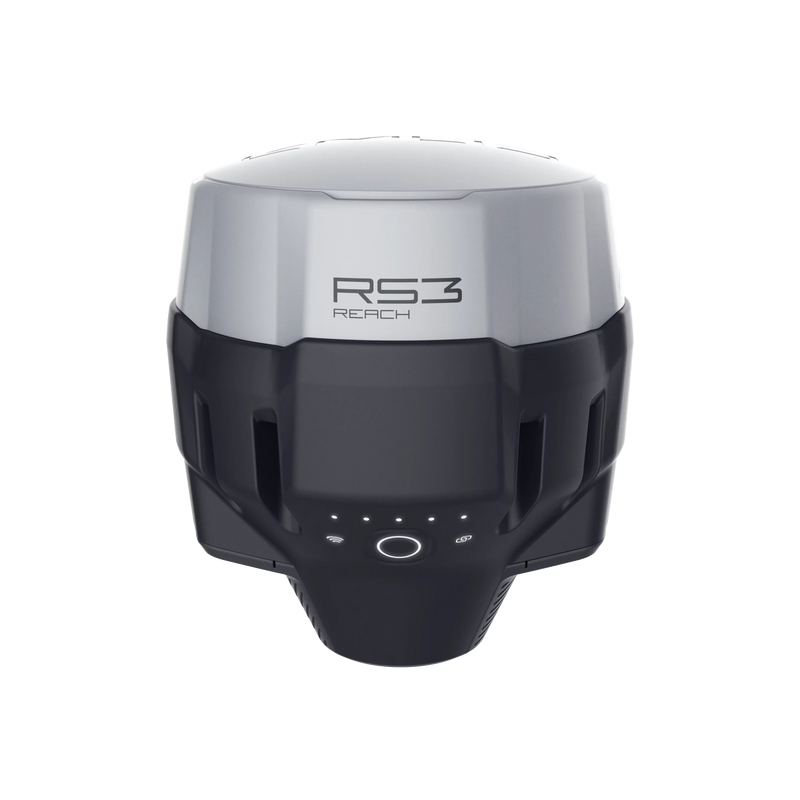

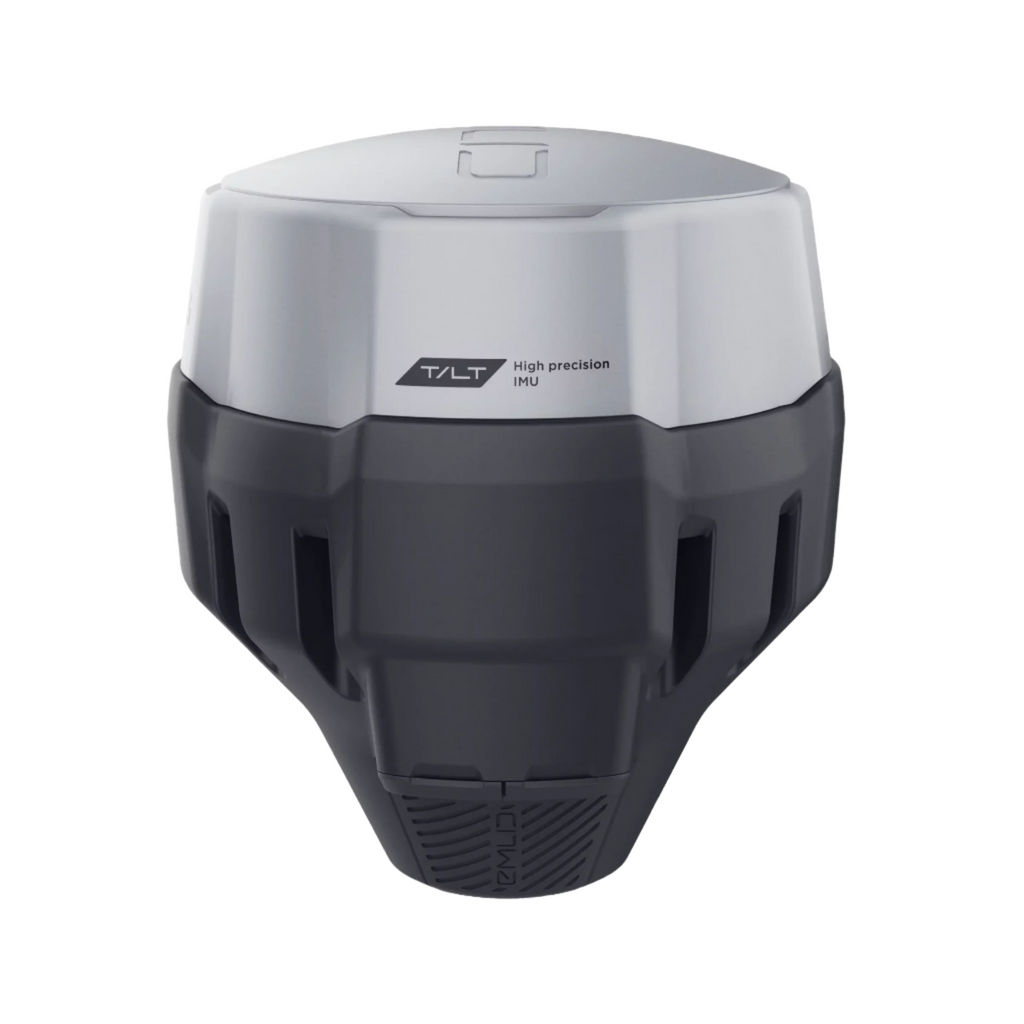

The Emlid Reach RS3 Multi-band RTK GNSS Receiver w/ Tilt Compensation is a sophisticated multi-band RTK GNSS receiver equipped with tilt compensation. This device is designed to provide survey-grade precision even in the most inaccessible locations and is complemented by a user-friendly mobile application.
The system is characterized by a 6DOF IMU and GNSS support for a variety of systems including GPS/QZSS, GLONASS L1, L2; BeiDou B1, B2; Galileo E1, E5. It is capable of operating for an extended period of up to 18 hours with tilt compensation. The device is powered by a Li-Ion battery and supports USB Type-C charging, LTE and Wi-Fi connectivity, and dual-band radio.
The Emlid Reach RS3 Advanced GPS System is designed to support NTRIP and RTCM3 protocols, enabling it to send and receive corrections. The package comes with a carrying case with a strap, a LoRa antenna, and a USB Type-C cable.
The device is compact with mechanical dimensions of 126 x 126 x 142 mm and a weight of 950g. It is designed to withstand harsh conditions with an ingress protection rating of IP67. The device can function autonomously for 18 hours as an RTK rover with tilt, and 22 hours of logging.
The system is equipped with LoRa and UHF radios, an LTE modem, Wi-Fi, Bluetooth, and RS-232, USB Type-C ports. It has an internal storage capacity of 16 GB and is capable of tracking a variety of signals including GPS/QZSS L1C/A, L2C, GLONASS L1OF, L2OF, BeiDou B1I, B2I, Galileo E1B/C, E5b.
Specifications
|
||||||
Mechanical |
Electrical |
Positioning |
||||
| Dimensions: 126 x 126 x 142 mm | Autonomy: 18 hrs as RTK rover with tilt, 22 hrs of logging | Static: H: 4 mm + 0.5 ppm | V: 8 mm + 1 ppm | ||||
| Weight: 950 g | Battery:Li-Ion 5200 mAh, 7.2 V, 37.44 Wh | PPK: H: 5 mm + 0.5 ppm | V: 10 mm + 1 ppm | ||||
| Operating tº: -20 to +65 ºC | External power input: 7.2 V | RTK: H: 7 mm + 1 ppm | V: 14 mm + 1 ppm | ||||
| Ingress protection: IP67 | Charging: USB Type-C 5 V, 3 A | Tilt compensation: RTK + 2 mm + 0.3 mm/° | ||||
| Certification: FCC, CE | Convergence time: ~5 s typically | |||||
|
|
||||||
Connectivity |
Data |
GNSS |
||||
| LoRa radio | Corrections: NTRIP, RTCM3 | Number of channels: 184 | ||||
| Frequency range: 868/915 MHz | Position output: NMEA, LLH/XYZ | Update rates: up to 10 Hz | ||||
| Power: 0.1W | Data Logging: RINEX, NMEA, LLH/XYZ, UBX | IMU: 6DOF | ||||
| UHF radio—receive only* | Signal tracked: GPS/QZSS L1C/A, L2C GLONASS L1OF, L2OF BeiDou B1I, B2I Galileo E1-B/C, E5b | |||||
| Frequency range: 410 - 470 MHz | ||||||
| Protocols: TRIMTALK 450S** | ||||||
| Modulation type: GMSK | ||||||
| LTE modem | ||||||
| Regions: Global | ||||||
| Bands: FDD-LTE: 1,2,3,4,5,7, 8, 12, 13, 18, 19, 20, 26, 28, 66 TD-LTE: 38,40,41 - UMTS (WCDMA/FDD): 1,3,2,4,5,6, 8,19 Quad-band, 850/1900, 900/1800 MHz | ||||||
| SIM card: nano-SIM | ||||||
| WiFi: 802.11 b/g/n | ||||||
| Bluetooth: 4.0 (BR/EDR + LE) | ||||||
| Ports: RS-232, USB Type-C | ||||||
|
*Requires a 410-470 MHz antenna, sold separately. **TRIMTALK is a trademark of Trimble Inc. |
||||||
