Emlid Reach M2 with GNSS Antenna

Emlid Reach M2
with GNSS Antenna

SKU: EM-Reach-M2-GNSS-Ant

£729.99

Overview Mapping made easy. With advanced multi-band RTK technology, the Reach M2 module offers precise navigation and mapping capabilities for your UAV. Enjoy reliable and accurate results, no matter the terrain or environment. Specifications Mechanical Electrical Positioning ...

- +

Guaranteed safe checkout

INTERNATIONAL	XS	S	M	L	XL	XXL	XXXL
EUROPE	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
CHEST FIT (INCHES)	28"	30"	32"	34"	36"	38"	40"
CHEST FIT (CM)	716	76	81	86	91.5	96.5	101.1
WAIST FIR (INCHES)	21"	23"	25"	27"	29"	31"	33"
WAIST FIR (CM)	53.5	58.5	63.5	68.5	74	79	84
HIPS FIR (INCHES)	33"	34"	36"	38"	40"	42"	44"
HIPS FIR (CM)	81.5	86.5	91.5	96.5	101	106.5	111.5
SKORT LENGTHS (SM)	36.5	38	39.5	41	42.5	44	45.5

Description Shipping Policy

Overview

Mapping made easy. With advanced multi-band RTK technology, the Reach M2 module offers precise navigation and mapping capabilities for your UAV. Enjoy reliable and accurate results, no matter the terrain or environment.


Specifications

Mechanical	Electrical	Positioning

Dimensions: 56.4 x 45.3 x 14.6 mm	Power supply voltage on USB or JST-GH connectors: 4.75 - 5.5 V	Static horizontal: 4 mm + 0.5 ppm
Weight: 35g	Antenna DC bias:3.3 V	Static vertical: 8 mm +1 ppm
Operating tº: -20 to +65 ºC	Typical current consumption @5V: 300mA	Kinematic horizontal: 7 mm + 1 ppm
		Kinematic vertical: 14 mm + 1 ppm


Connectivity	Data	GNSS

LoRa radio (sold separately)	Corrections: NTRIP,VRS, RTCM3	Number of channels: 184
Frequency range: 868/915 MHz	Position output: NMEA, LLH/XYZ	Update rates: 5 Hz
Distance: Up to 8 km	Data Logging: RINEX with events with update rate up to 10 Hz

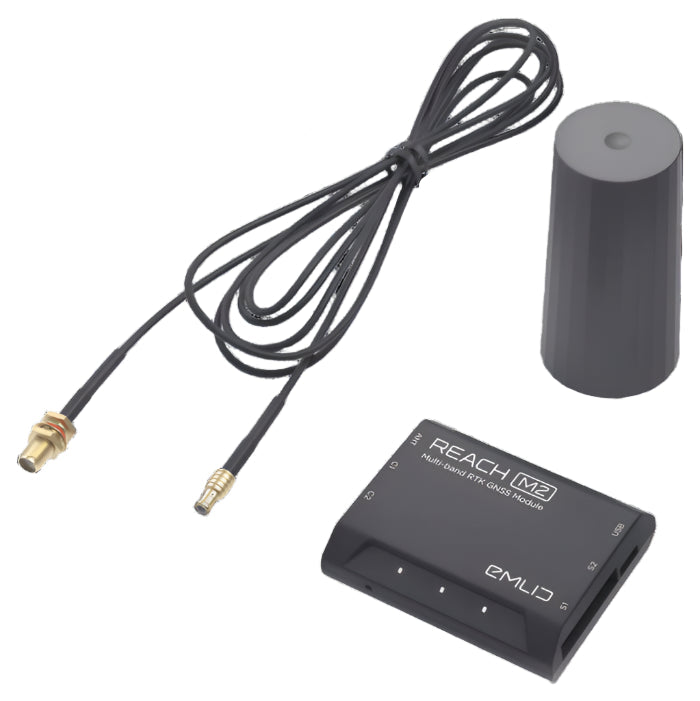

In the box:

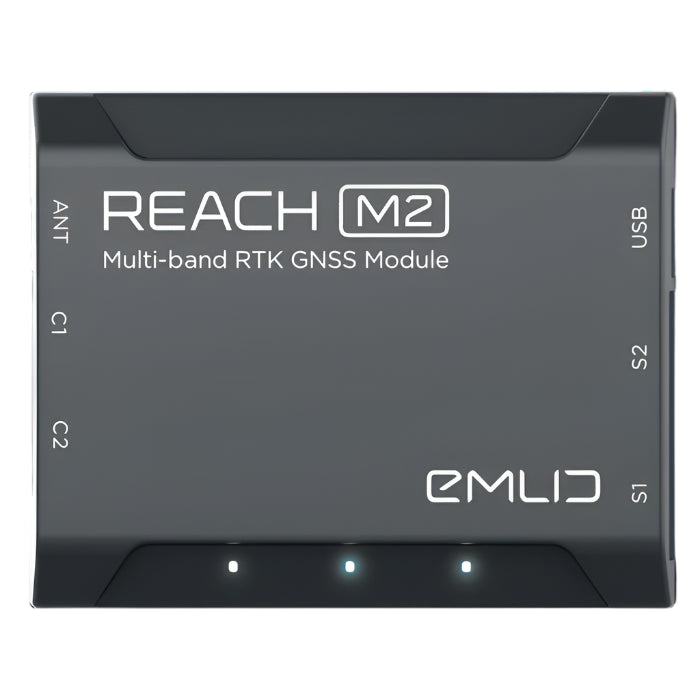

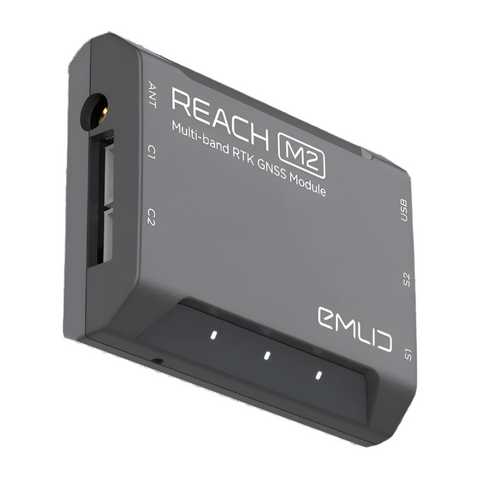

– Reach M2

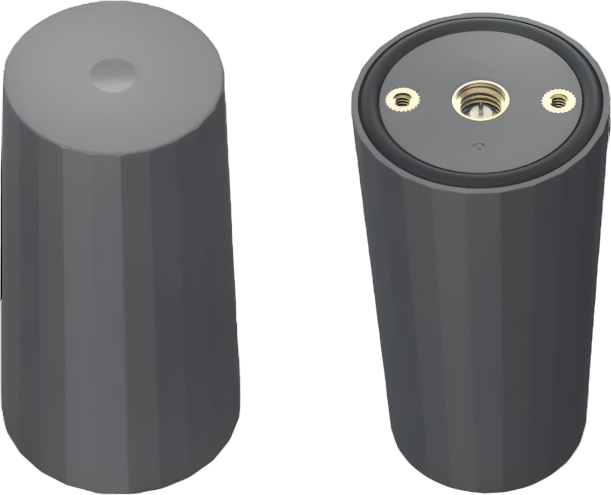

• Multi-band GNSS antenna

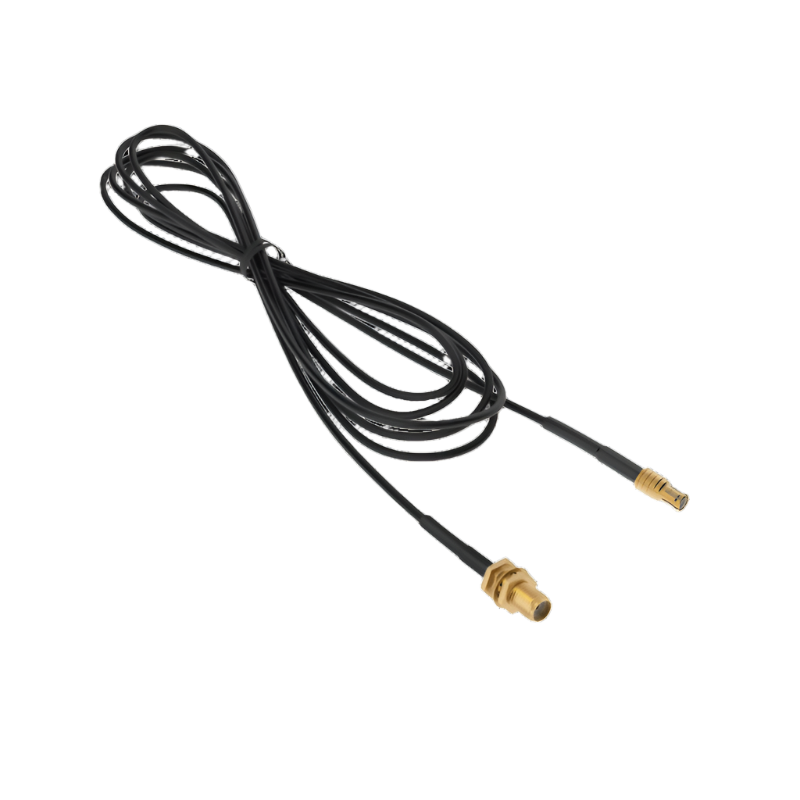

• Reach M+/M2 SMA antenna cable 0.5m
– Micro-USB cable
– JST-GH 6-pin to jumper pin cable
– JST-GH 5-pin to jumper pin cable
