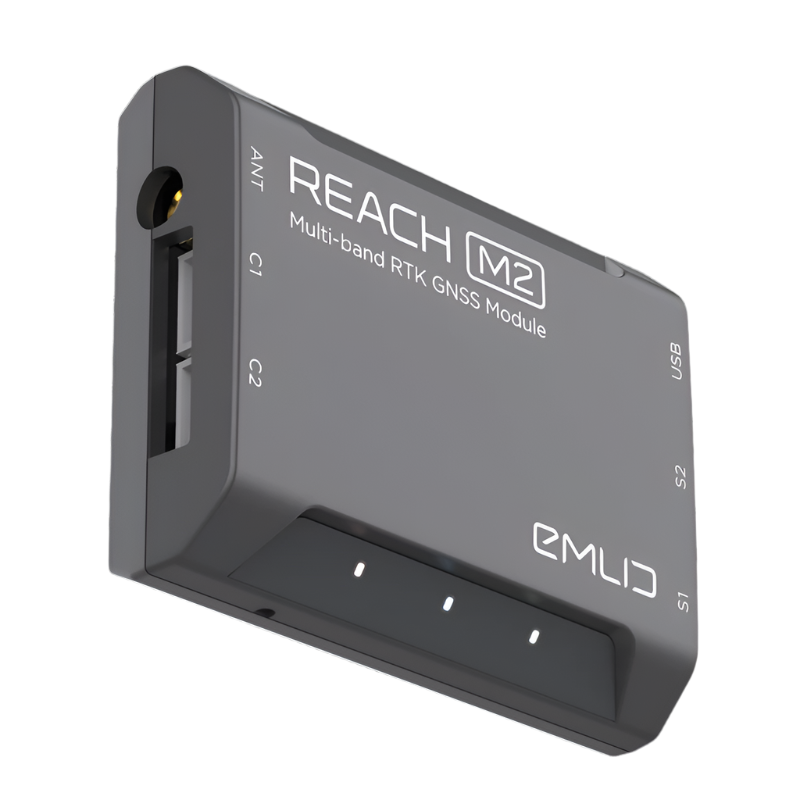

Emlid Reach M2 GNSS Module

Emlid Reach M2
GNSS Module

SKU: EM-RCH103

£540.83

Overview Expertly navigate and map every inch. The EMLID Reach M2 GNSS Module harnesses multi-band RTK technology to provide unmatched precision in your UAV mapping flights. Specifications Mechanical Electrical Positioning Dimensions: 56.4 x 45.3 x 14.6 mm Power...

- +

Guaranteed safe checkout

INTERNATIONAL	XS	S	M	L	XL	XXL	XXXL
EUROPE	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
CHEST FIT (INCHES)	28"	30"	32"	34"	36"	38"	40"
CHEST FIT (CM)	716	76	81	86	91.5	96.5	101.1
WAIST FIR (INCHES)	21"	23"	25"	27"	29"	31"	33"
WAIST FIR (CM)	53.5	58.5	63.5	68.5	74	79	84
HIPS FIR (INCHES)	33"	34"	36"	38"	40"	42"	44"
HIPS FIR (CM)	81.5	86.5	91.5	96.5	101	106.5	111.5
SKORT LENGTHS (SM)	36.5	38	39.5	41	42.5	44	45.5

Description Shipping Policy

Overview

Expertly navigate and map every inch. The EMLID Reach M2 GNSS Module harnesses multi-band RTK technology to provide unmatched precision in your UAV mapping flights.


Specifications

Mechanical	Electrical	Positioning

Dimensions: 56.4 x 45.3 x 14.6 mm	Power supply voltage on USB or JST-GH connectors: 4.75 - 5.5 V	Static horizontal: 4 mm + 0.5 ppm
Weight: 35g	Antenna DC bias:3.3 V	Static vertical: 8 mm +1 ppm
Operating tº: -20 to +65 ºC	Typical current consumption @5V: 300mA	Kinematic horizontal: 7 mm + 1 ppm
		Kinematic vertical: 14 mm + 1 ppm


Connectivity	Data	GNSS

LoRa radio (sold separately)	Corrections: NTRIP,VRS, RTCM3	Number of channels: 184
Frequency range: 868/915 MHz	Position output: NMEA, LLH/XYZ	Update rates: 5 Hz
Distance: Up to 8 km	Data Logging: RINEX with events with update rate up to 10 Hz

In the box:

– Reach M2
– Micro-USB cable
– JST-GH 6-pin to jumper pin cable
– JST-GH 5-pin to jumper pin cable
