Technical Specifications

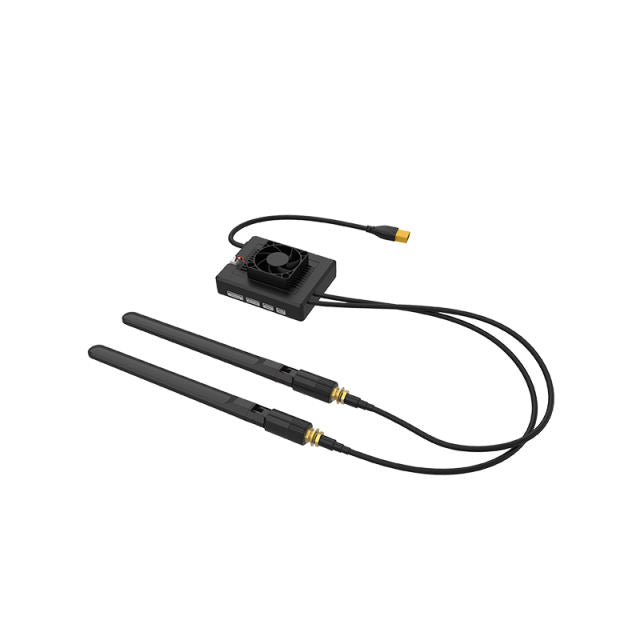

Air Unit for MK32 / HM30 / MK15 Enterprise Version
| Signal Output: | 16 channels of S.BUS, 5 channels of PWM |
| Interface & Ports: | - SBUS: 3-Pin - Datalink (to FC): UART 4-Pin - PWM Channel 1 to 5: 6-Pin - Video Input: Ethernet 8-Pin - Firmware Upgrade: Type-C |
| Dimensions (antenna excluded, fan included): | 70 x 55 x 16 mm |
| Weight (antenna excluded): | 74 g |
| Antenna Gain (standard omni): | 5 dBi |
| Power Input: | 11 to 16.8 V (expandable to 4S to 18S with BEC) |
| Working Temperature: | -10 to 50℃ |
