CZI ES 264 / 638 / 838 Launcher Set

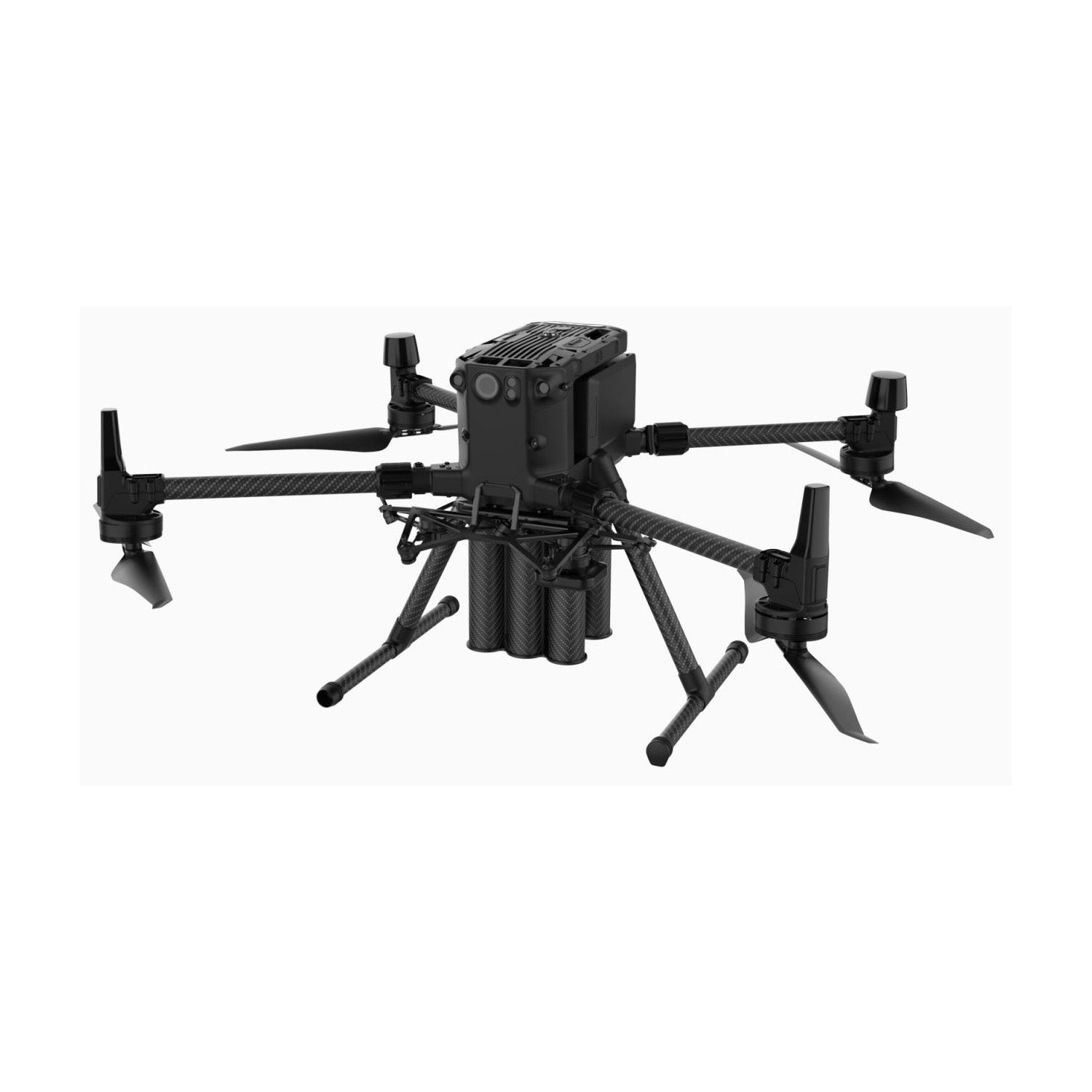

ES series launcher is intended exclusively for drones, based on the DJI PSDK and adapted to the DJI M300/M350 flight platform. Unique bracket with quick release and locking mechanism makes disassembly and assembly easy. The multiple vibration and shock resistant design is stable and reliable.

The launcher can be quickly replaced according to the actual mission, so that it can fire continuously and reload quickly, using a unique launch controller, real-time video feedback via PS DK link, link control via PSDK, hover window operation, without the need for additional third-party remote control hardware, one operator can complete the task.



Models: ES638 / ES838 / ES264

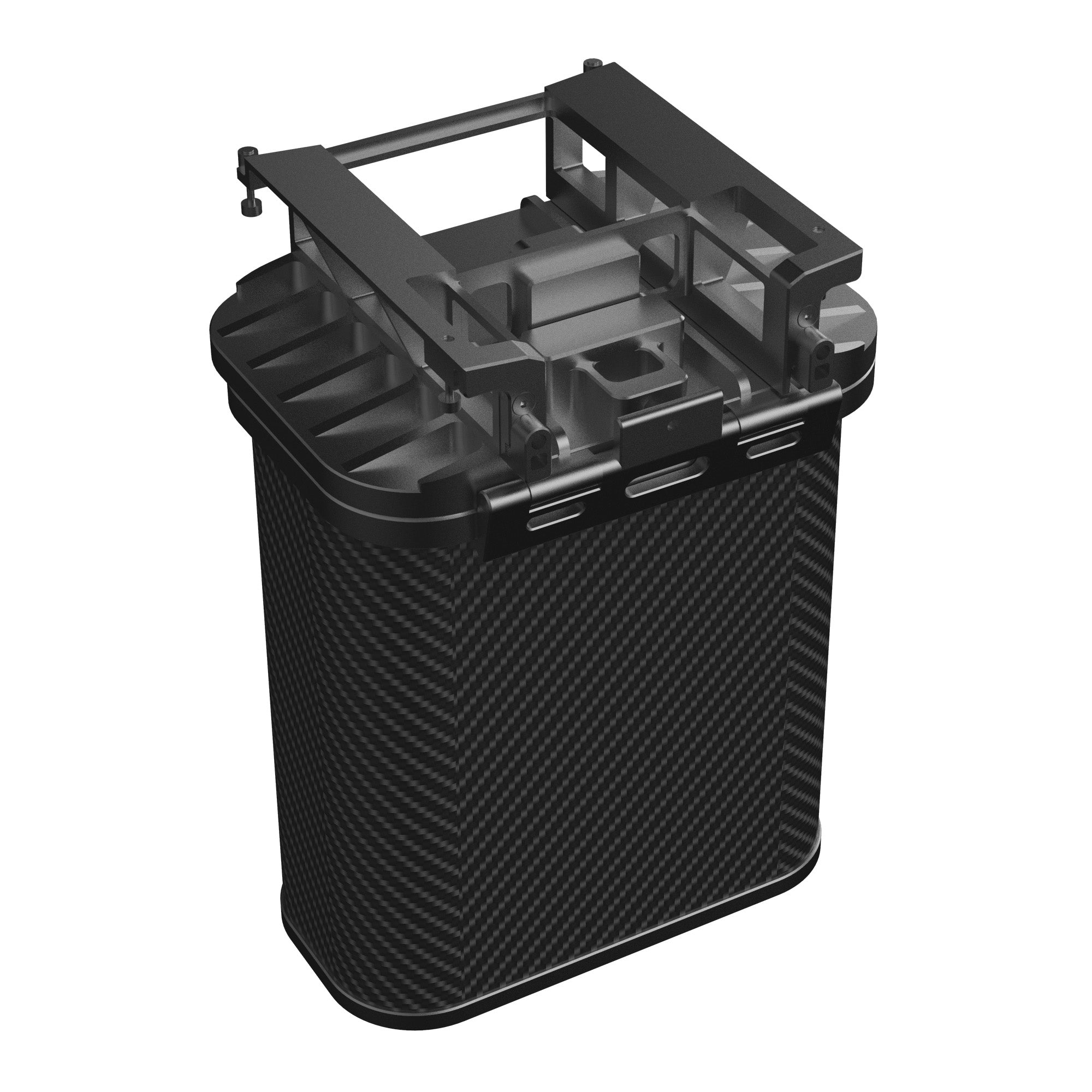

ES264

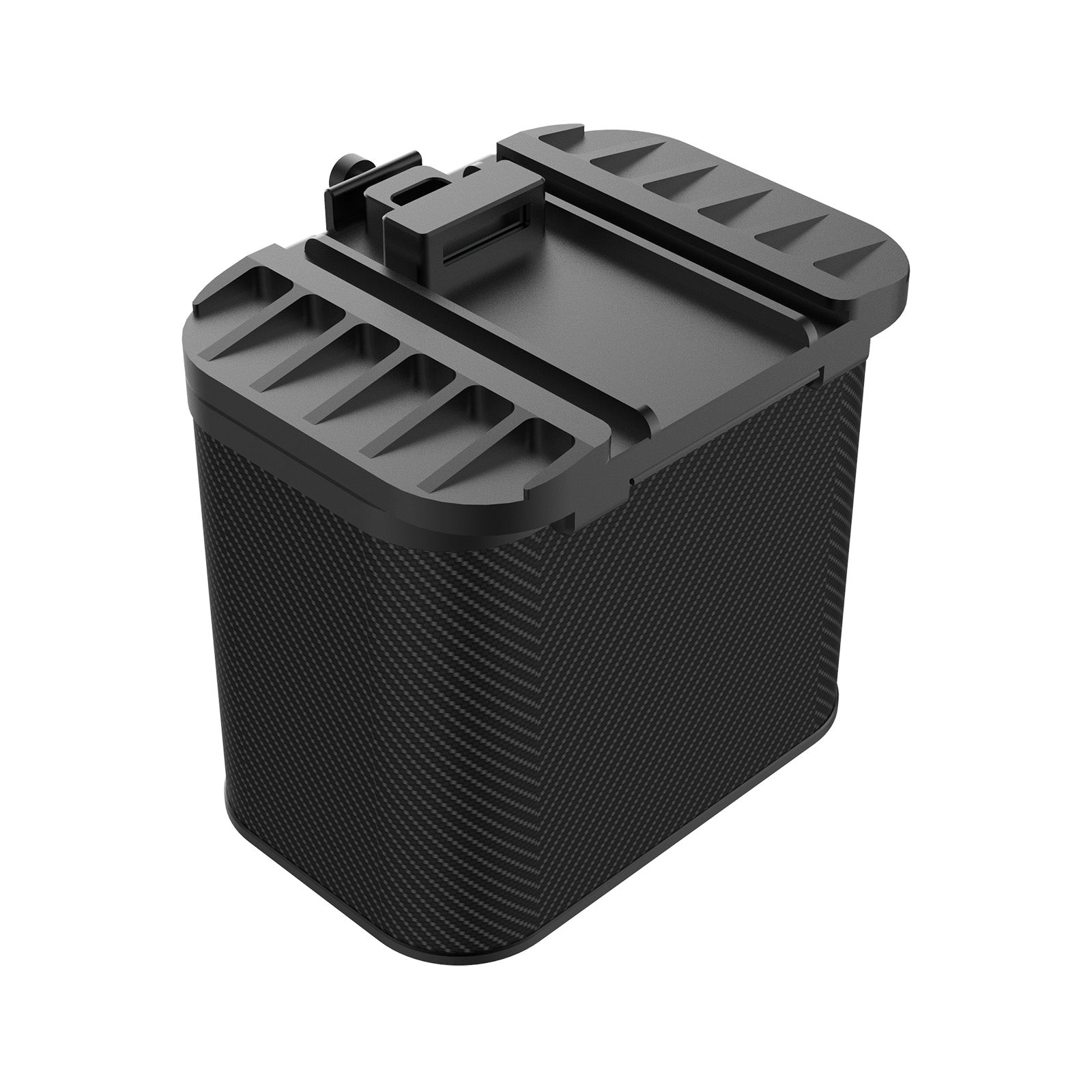

ES638

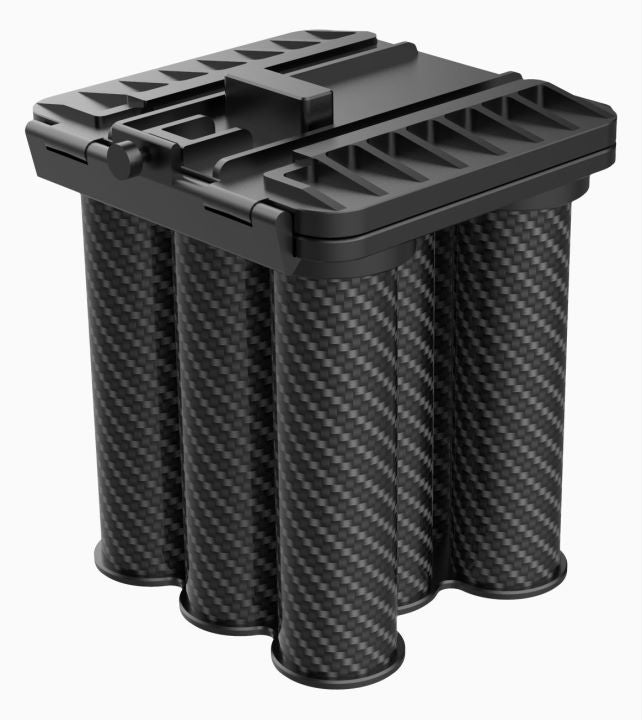

ES838


Technical Specifications:

Dimensions 140*160*180mm/172*160*180mm/140*160*226mm Mounting options Quick mount and release
Weight Product 1109±10g/1150g when empty Load interface DJI SkyPort V2.0
Cartridge capacity 6/8/2 rounds Power rating 25W
Supported ammunition 38mm electrify trigger ammunition Control method M300/350 RC + CZI Assistant App
Firing method Electrify triggering Control link DJI Drone Link
Supported models DJI matrix M300/350 RTK Series Control distance DJI M300/350 Control distance
