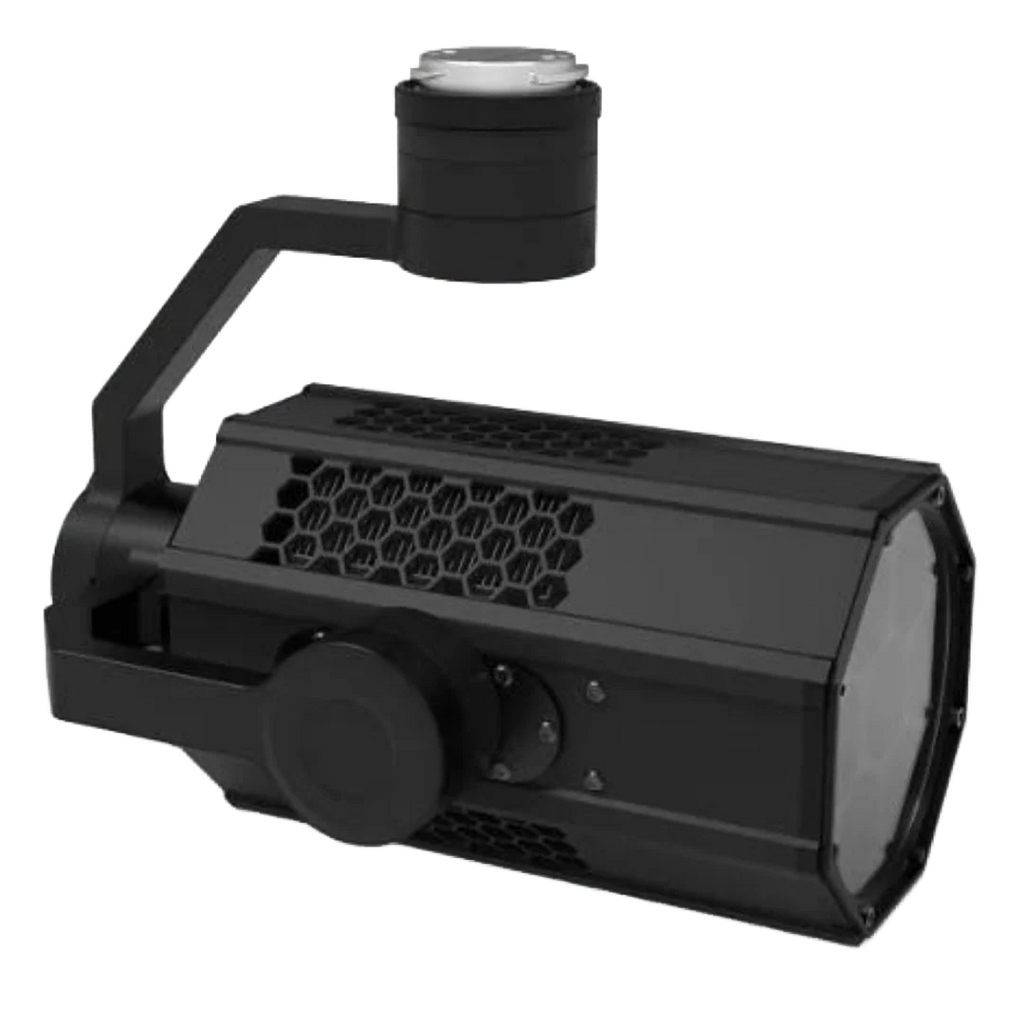

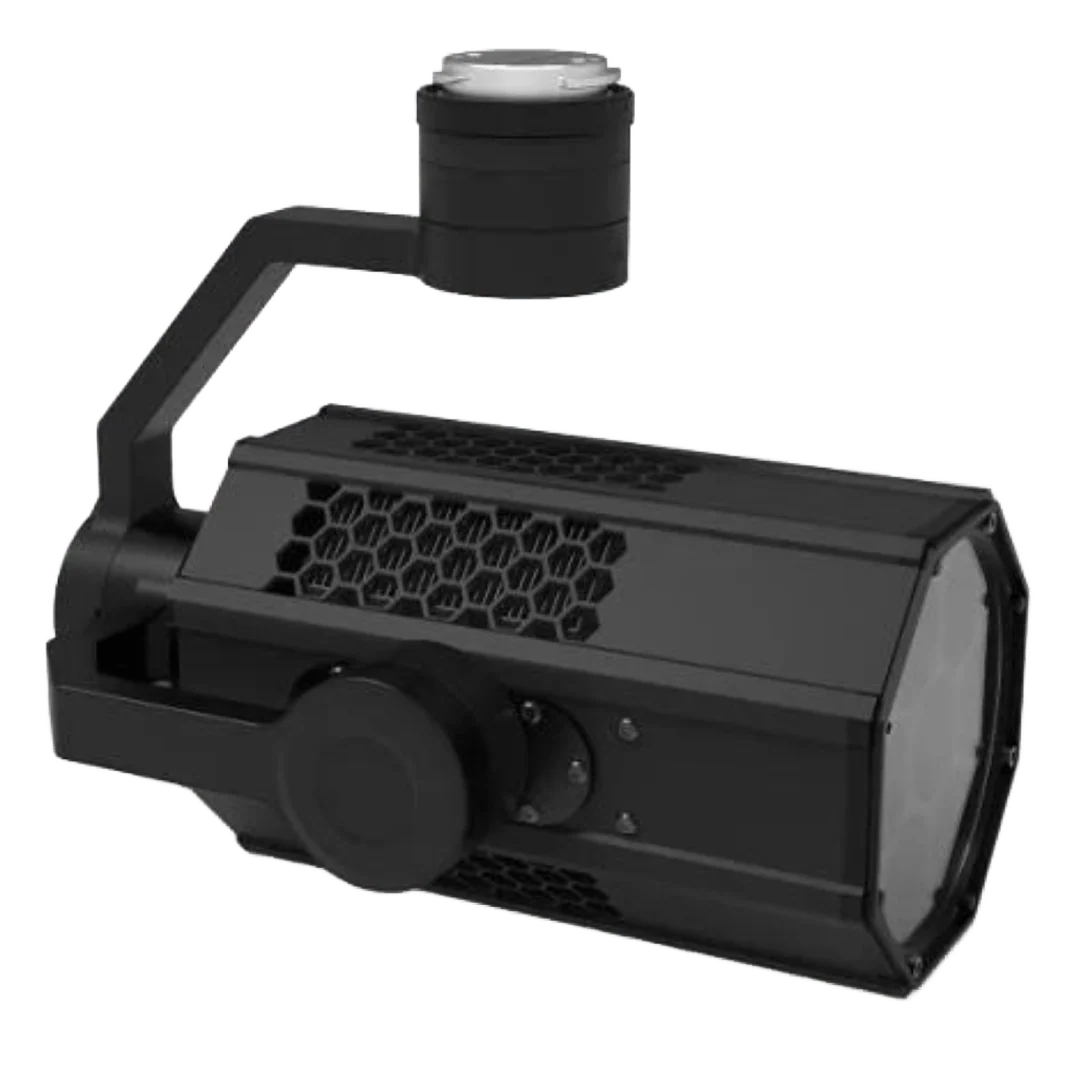

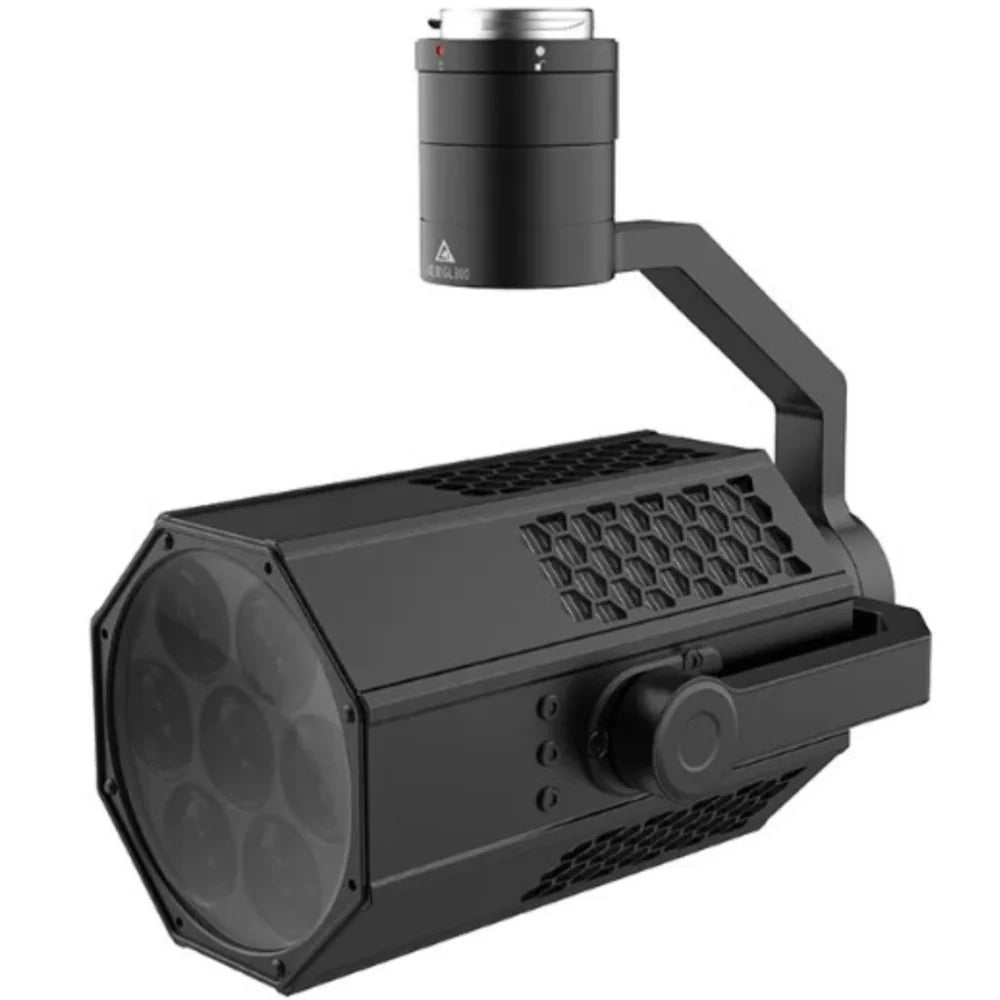

GL300 Product Overview
The CZI GL300 high-powered gimbal searchlight delivers exceptionally bright and stable illumination with a 300W output and 21,000 lumens of luminous flux. Its advanced optical lens produces a sharp, intense beam with a 45-degree field of view. Equipped with a three-axis gimbal, the light angle can be precisely adjusted to target specific areas from a safe distance. Additionally, it supports drone tethering, enabling extended, continuous lighting for prolonged operations.
The GL300 high-powered searchlight delivers a powerful, intense flash, making it perfect for rapid deployment in rescue missions, law enforcement, firefighting, and nighttime operations. Its robust illumination ensures clear visibility in critical situations, supporting effective and timely responses.
High Power super light illumination
7 LED beads. 300W high power. 21000lm lumen value. 45-degree illumination for a larger area.
Powered by tethering power system and gimbal movement
With tethering power system to maintain working over 10 hours fixed point light illumination. Can use drone battery providing emergency light illumination. Three-axis gimbal rotation for multi-angles of light illumination.
Optical imaging no reflective cup
Optical lens imaging technology. Even and clear brightness. No reflective cup designs. No side effects light spot.
Standard interface for general payloads

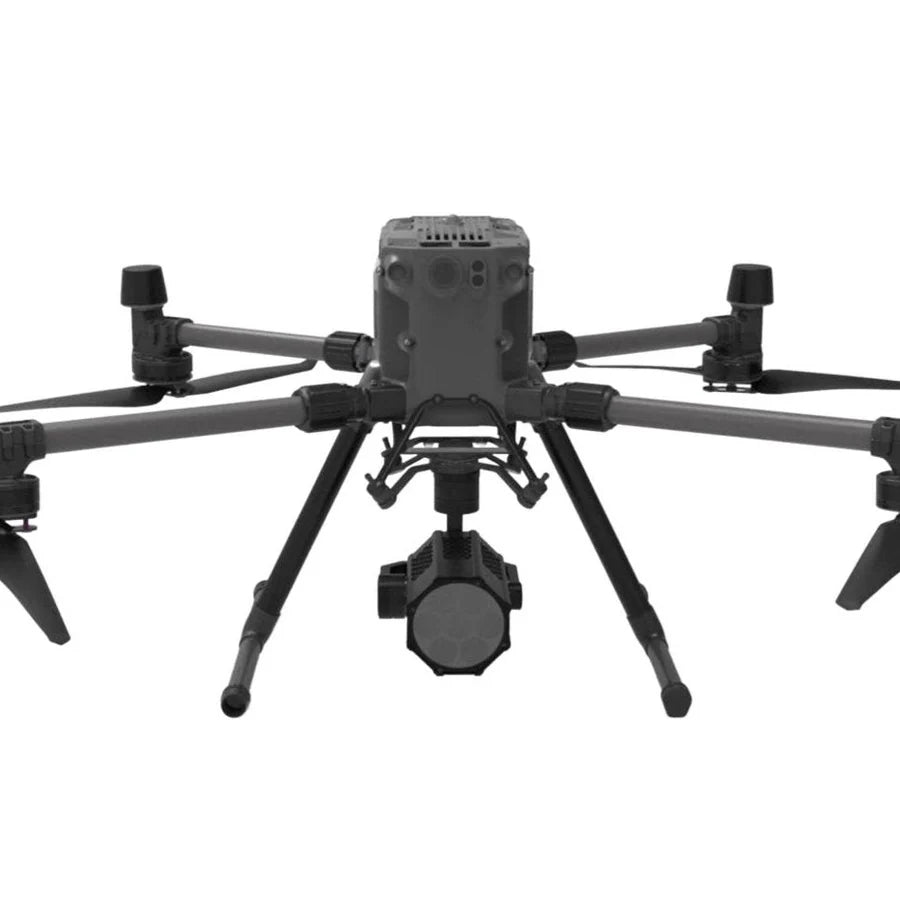

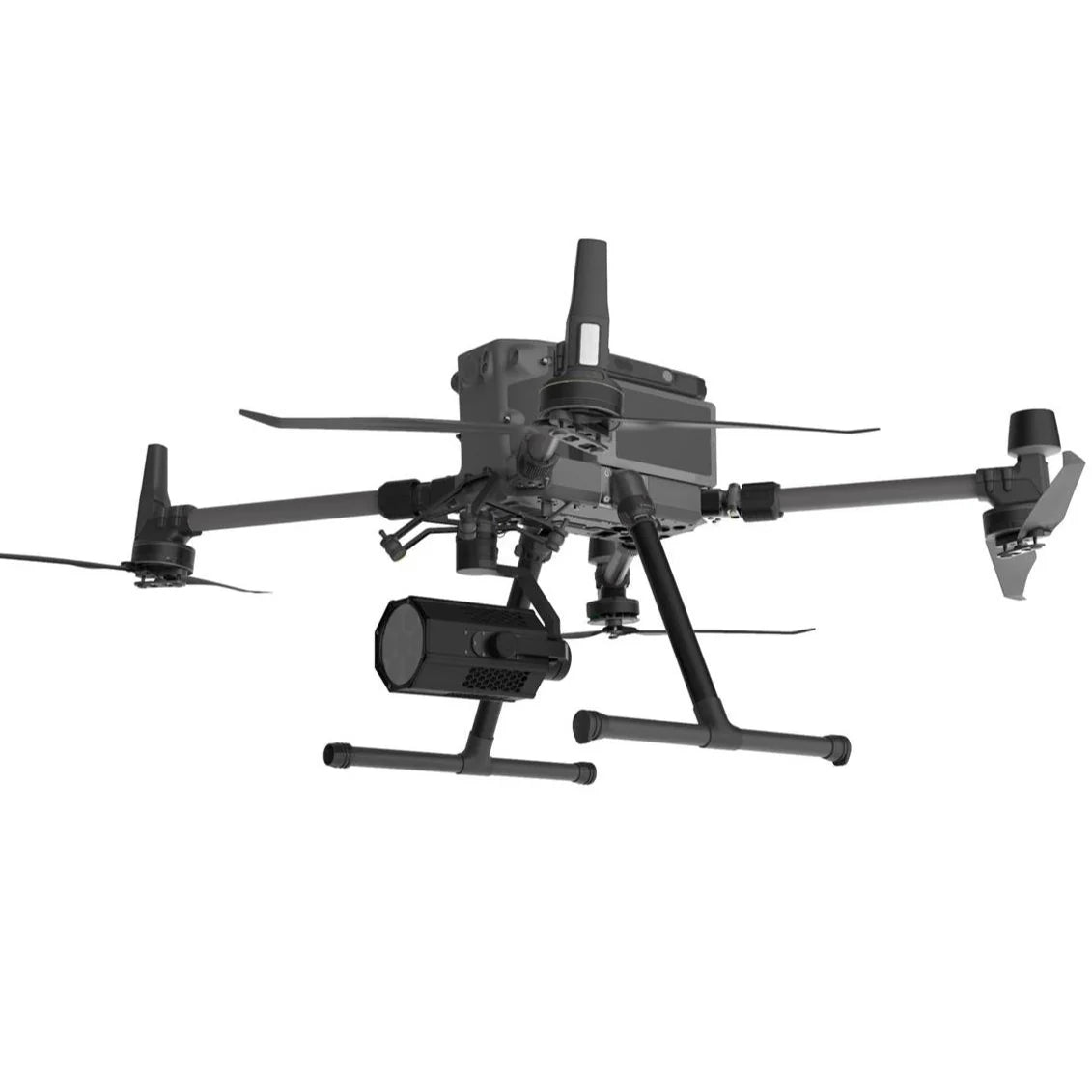

Use DJI Skyport V2.0 interface. Adapting to DJI matrix M300 RTK. CZI general quick release/mount interface.
Specifications
| Model | GL300 |
| Electrical interface | DJI SkyPort V2.0 |
| Control method | DJI Pilot |
| Weight | 1.17kg |
| Dimensions | 190*128*165 mm |
| Gross Power | 310W |
| LED Power | 300W |
| Power supply voltage | 48V |
| Luminous flux | 21000lm±3% |
| FOV | 45° |
| Illumination distance | 50m 100m |
| Illumination area | 1347m² 5387m² |
| Central illuminance | 27Lux 6Lux |
| Function mode | Constant light (300W) Flashing (300W) Gimbal angle adjustment Brightness adjustment |
| Controllable rotation range of gimbal | Pitch：-110~+30° Horizontal：±200° |
| Structure design range of the gimbal | Pitch：-110.3~+40° Horizontal：360° Roll：-90～+60° |
| Operating temperature | -20～+50°C |
